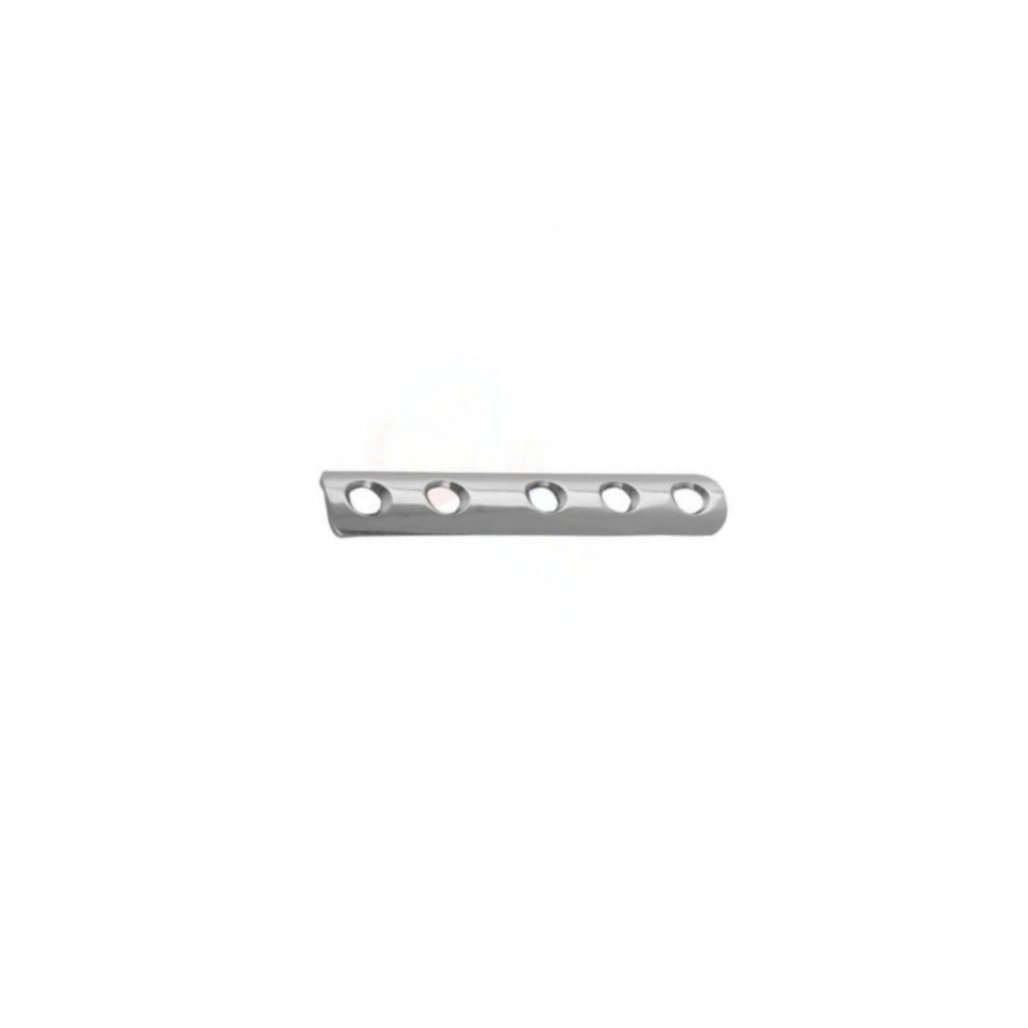

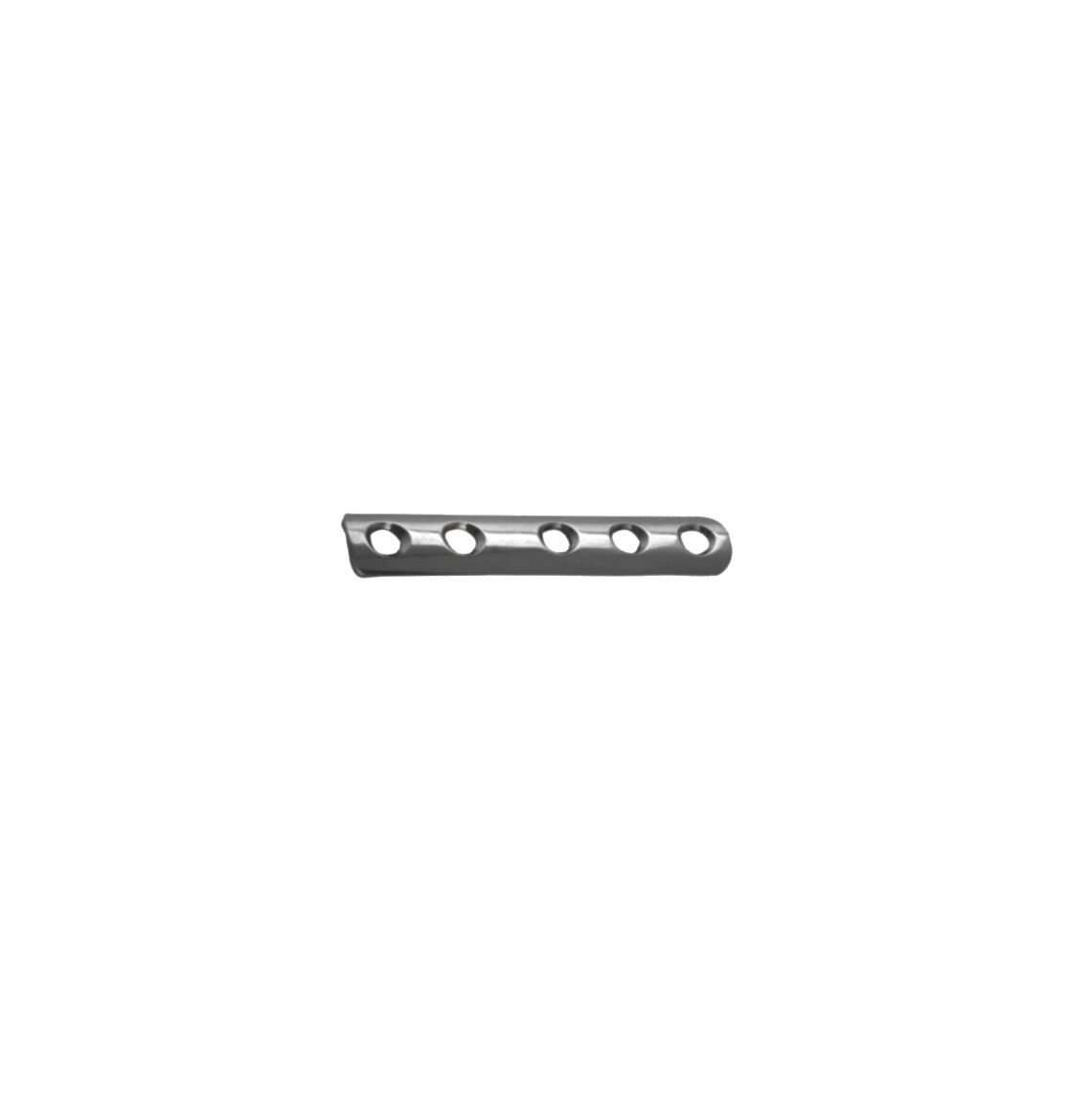

2.7MM Vet Quarter Tubular Plate
+ Description
The Ø2.7 mm Veterinary Quarter Tubular Plate is a lightweight and anatomically adaptable orthopedic implant designed for the stabilization of small bone fragments in veterinary patients. Manufactured from high-grade Titanium or Stainless Steel, this quarter-cylinder-shaped plate offers precise bone conformity, ideal for use in fracture fixation where minimal implant bulk is desired. Its compact profile and compatibility with Ø2.7 mm cortical screws make it suitable for delicate surgical procedures in small animals.
+ Indications
- The Ø2.7 mm Quarter Tubular Plate is a low-profile orthopedic implant designed for use in small animal veterinary fracture fixation, particularly in areas requiring minimal soft tissue disruption. Its quarter-circle cross-sectional shape offers excellent contourability, making it ideal for anatomical locations with complex surfaces.
- Primary Uses:
- Fracture Fixation in Small Animals: Used for stabilizing fractures in cats, small dogs, and other small animals, particularly in bones with limited surface area.
- Metacarpal and Metatarsal Fractures: Commonly applied in the fixation of small long bone fractures in the limbs.
- Radius and Ulna Fractures: Provides stable fixation with minimal implant prominence in the forelimb.
- Fibula and Mandible Fractures: Suitable for bones where space and soft tissue coverage are limited.
- Osteotomies and Corrective Surgeries: Used to stabilize bone segments after deliberate cuts for realignment or lengthening.
- Periarticular Fractures: Offers strong fixation close to joints where small fragment systems are necessary.
- Temporary or Permanent Fixation: Can be used as a standalone implant or in combination with other plates, wires, or external fixators depending on fracture complexity.
+ Key Features
- Quarter Tubular Design: Offers superior bone contact and minimal prominence under soft tissue.
- Precision Manufactured: From medical-grade Titanium or Stainless Steel ensuring durability and corrosion resistance.
- Low-Profile Geometry: Minimizes soft tissue irritation during and after surgery.
- Screw Compatibility: Accepts Ø2.7 mm cortical screws for secure fixation.
- Versatile Sizes: Available in multiple lengths and hole configurations for procedural flexibility.
Product Ordering
| Holes | Length (mm) | SS | TI |
|---|---|---|---|
| 2 | 18 | 9034SS02 | 9034TI02 |
| 3 | 26 | 9034SS03 | 9034TI03 |
| 4 | 34 | 9034SS04 | 9034TI04 |
| 5 | 42 | 9034SS05 | 9034TI05 |
| 6 | 50 | 9034SS06 | 9034TI06 |
| 7 | 58 | 9034SS07 | 9034TI07 |
| 8 | 66 | 9034SS08 | 9034TI08 |
| 9 | 74 | 9034SS09 | 9034TI09 |
| 10 | 82 | 9034SS10 | 9034TI10 |
