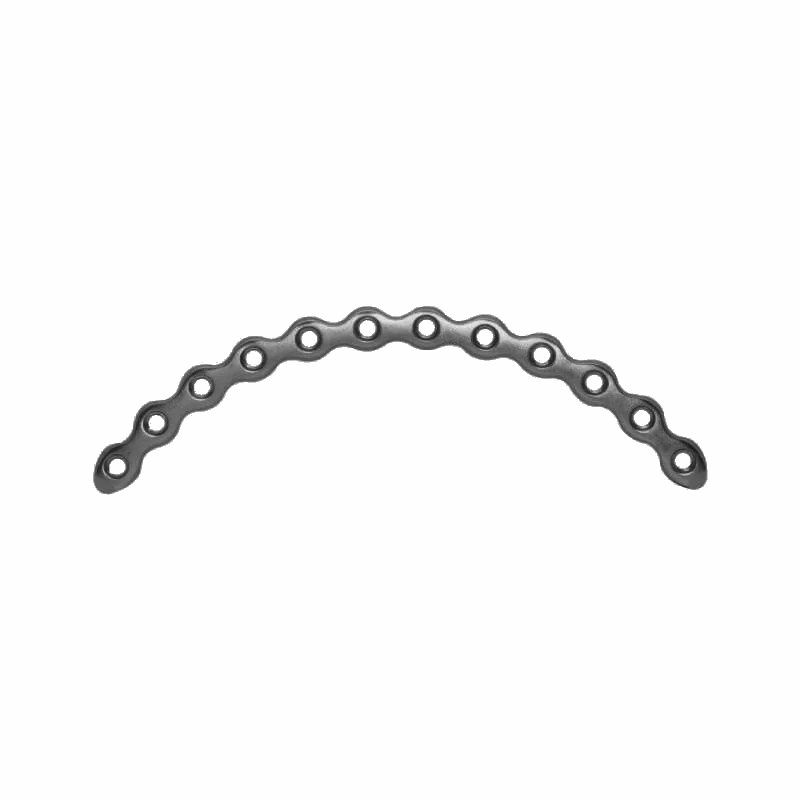

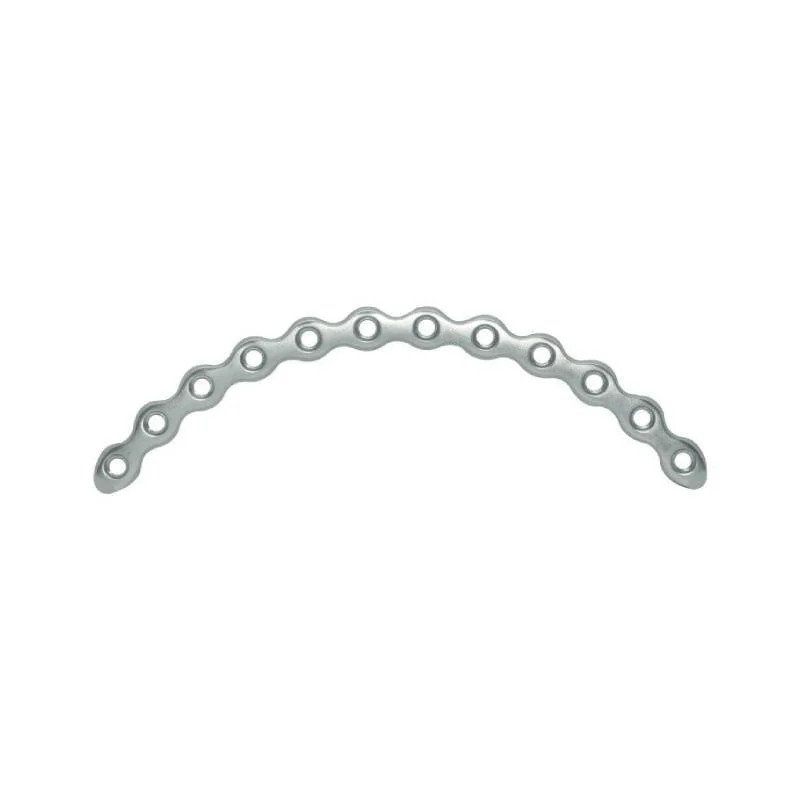

3.5MM Curved Pelvic LCP
+ Description
The Curved Pelvic LCP provides reconstruction plate solutions to support fixation during pelvic osteosyntheses. These plates follow the contours of the pelvic bones and accept locking screws or cortex screws in the same round conical plate holes.
+ Indications
- Reconstruction surgery for Pelvic and Acetabular.
- Fracture fixation of Distal Humerus, Clavicle and Scapula.
+ Key Feature
- Plates available for Left and Right both direction

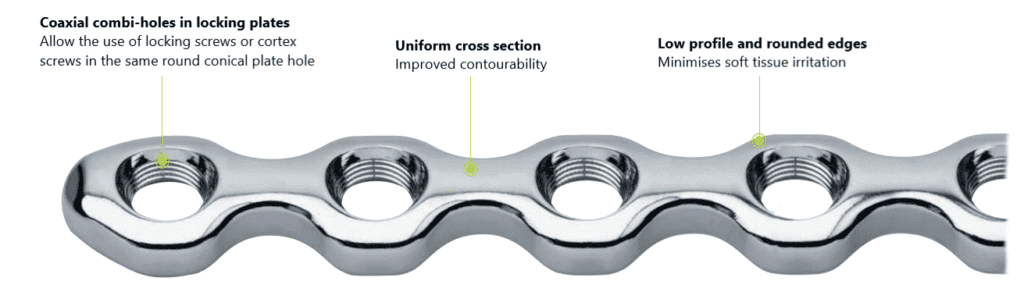

- Plate has combi holes and round holes. Combi holes allow fixation with locking screws in the threaded section and cortex screws in the dynamic compression unit section for compression.
- The shaft holes accept 3.5MM locking screws in the threaded portion or 3.5MM cortical screws or 4MM cancellous screws in the compression portion.
- 3.5MM Locking Reconstruction Plates Curved Low Profile allow implant placement to address the individual fracture pattern.
- Choice of different lengths of plate eliminates the need to cut plates.
- Pre-contoured plate to match anatomical shape.
- Available in both Titanium and Stainlessl.
- locking plate increases construct stability, decreases risk of screw back-out and subsequent loss of reduction. It also reduces the need for precise anatomic plate contouring and minimizes the risk of stripped screw holes.
Product Ordering
| Holes | SS | TI |
|---|---|---|
| 6 | 1260SS06 | 1260TI06 |
| 7 | 1260SS07 | 1260TI07 |
| 8 | 1260SS08 | 1260TI08 |
| 9 | 1260SS09 | 1260TI09 |
| 10 | 1260SS10 | 1260TI10 |
| 11 | 1260SS11 | 1260TI11 |
| 12 | 1260SS12 | 1260TI12 |
| 13 | 1260SS13 | 1260TI13 |
| 14 | 1260SS14 | 1260TI14 |
| 15 | 1260SS15 | 1260TI15 |
| 16 | 1260SS16 | 1260TI16 |
