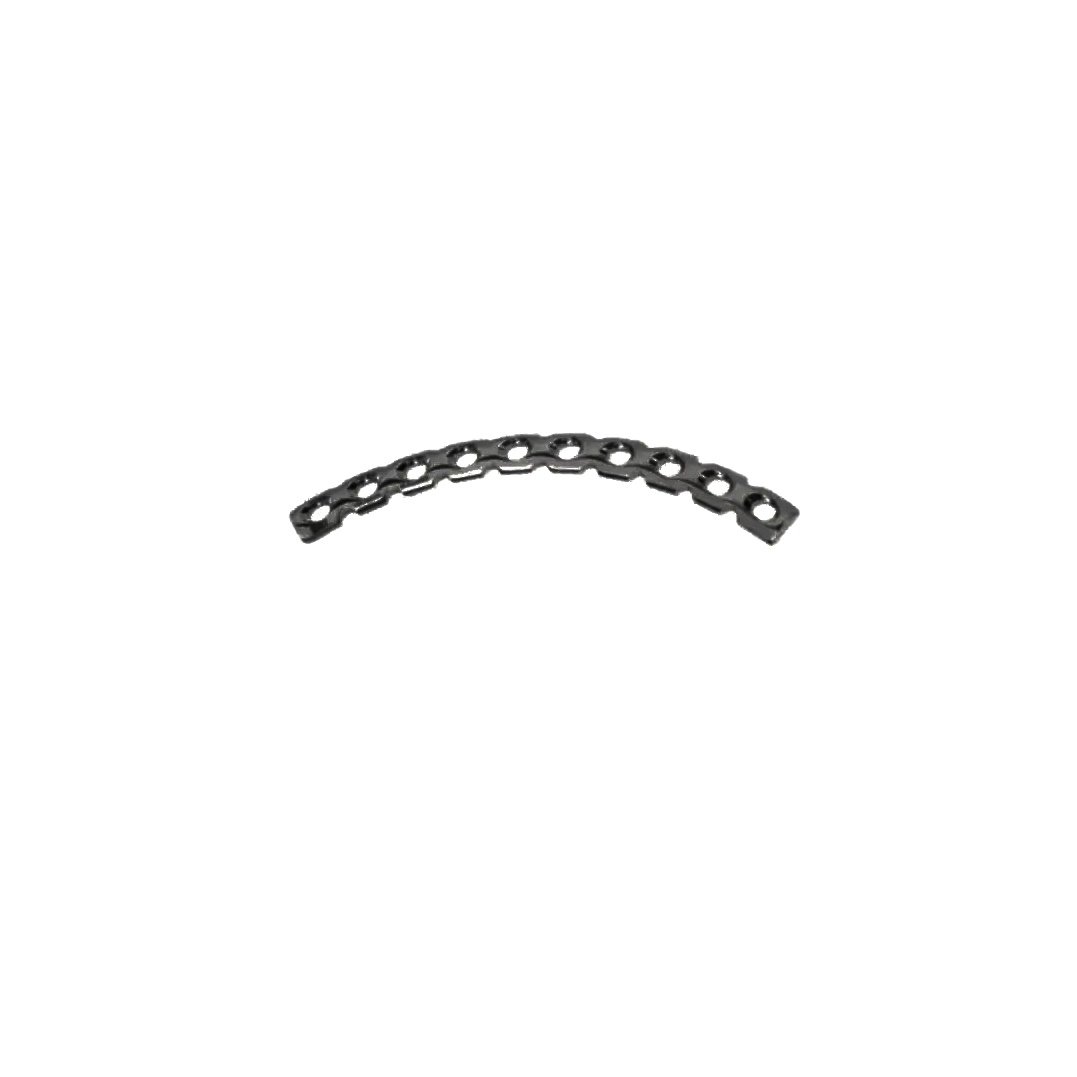

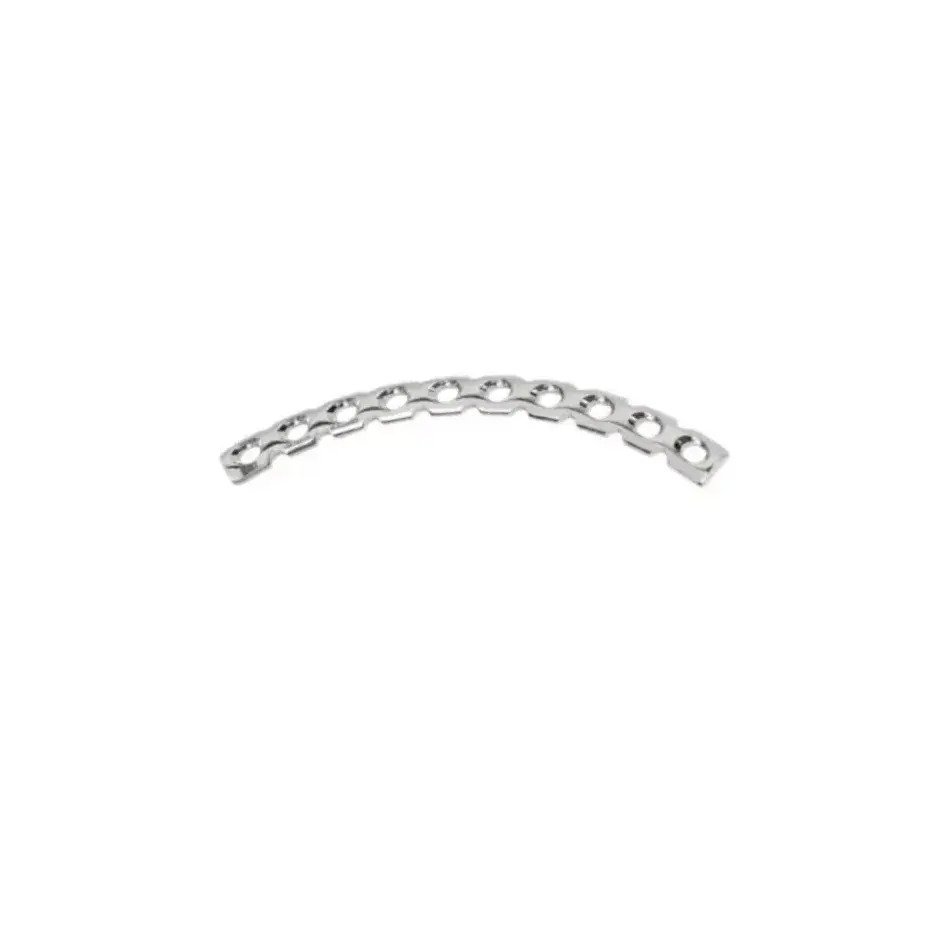

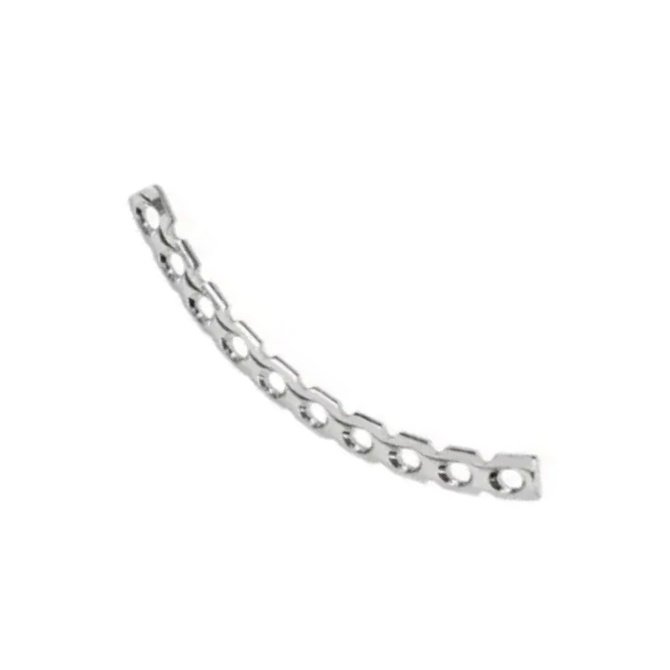

3.5MM Vet Reconstruction Plate | Curved
+ Description
The Ø3.5 mm Veterinary Reconstruction Plate (Curved) is a precision-engineered orthopedic implant designed for the treatment of complex fractures in small to medium-sized animals. Fabricated from medical-grade Titanium or Stainless Steel, this plate features a pre-contoured curved shape that aligns naturally with the anatomical curvature of long bones, providing superior fit and fixation.
+ Indications
- Used in midshaft and diaphyseal fracture repair in the femur, tibia, humerus, or radius.
- Supports osteotomy procedures and deformity corrections.
- Ideal for reconstructing curved anatomical regions without excessive contouring.
- Suitable for canine and feline orthopedic surgeries requiring high precision and durability.
+ Key Features
- Pre-curved Anatomical Design: Enhances adaptation to bone surface, reducing the need for intraoperative bending.
- Multiple Hole Configuration: Supports versatile screw placement and load distribution.
- High Fatigue Resistance: Suitable for dynamic and weight-bearing fracture fixation.
- Corrosion-Resistant Titanium or Stainless Steel: Ensures long-term biocompatibility and structural integrity.
- Compatible with Ø3.5 mm Cortical Screws: Allows secure, stable fixation.
Product Ordering
| HOLES | LENGTH {MM} | SS | CAT NO. TIT |
|---|---|---|---|
| 5 | 58 | 9056SS05 | 9056TI05 |
| 6 | 70 | 9056SS06 | 9056TI06 |
| 7 | 82 | 9056SS07 | 9056TI07 |
| 8 | 94 | 9056SS08 | 9056TI08 |
| 9 | 106 | 9056SS09 | 9056TI09 |
| 10 | 118 | 9056SS10 | 9056TI10 |
| 11 | 130 | 9056SS11 | 9056TI11 |
| 12 | 142 | 9056SS12 | 9056TI12 |
| 13 | 154 | 9056SS13 | 9056TI13 |
| 14 | 166 | 9056SS14 | 9056TI14 |
| 16 | 190 | 9056SS16 | 9056TI16 |
| 18 | 214 | 9056SS18 | 9056TI18 |
