3.5MM Vet Small DCP
+ Description

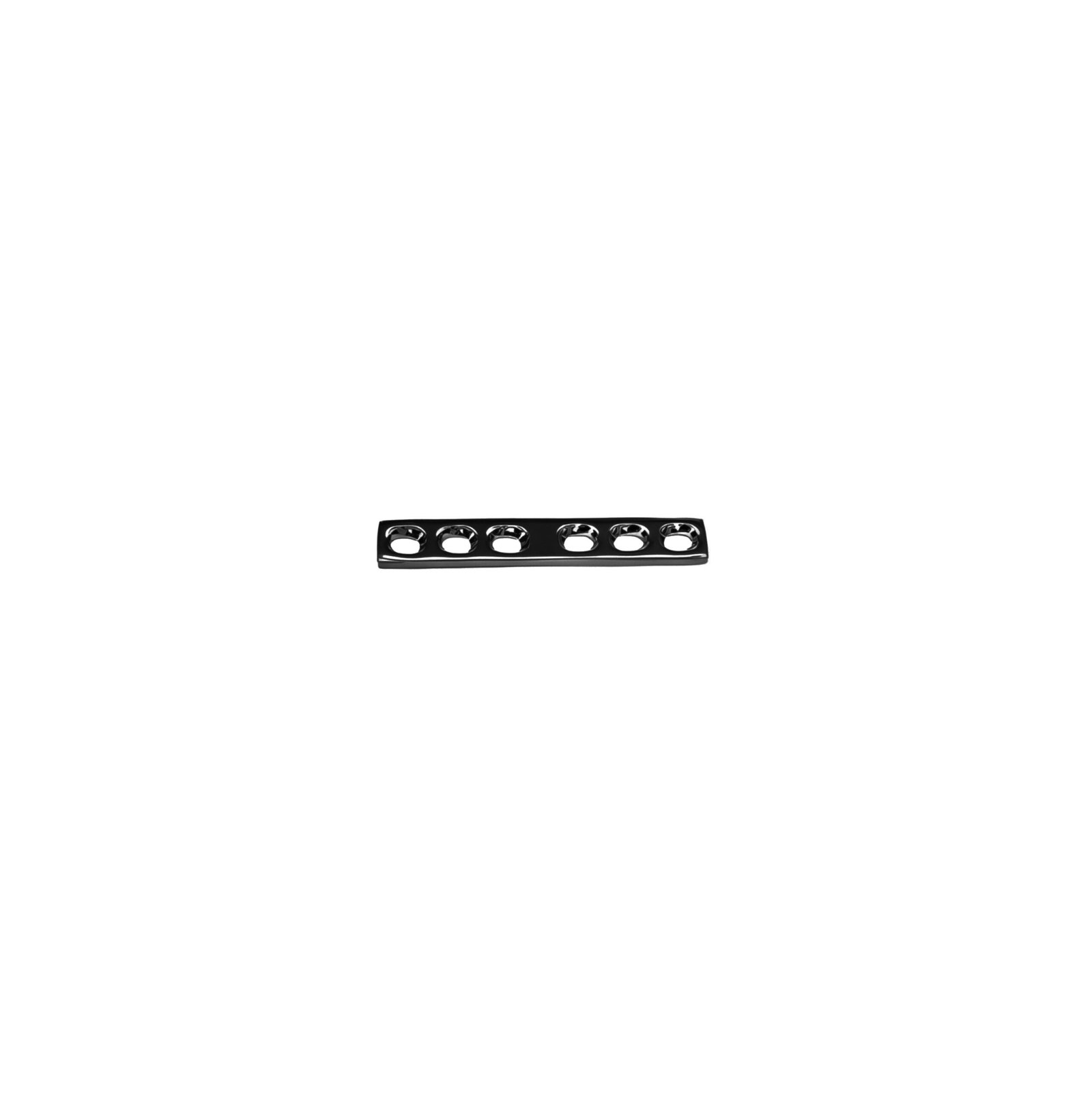

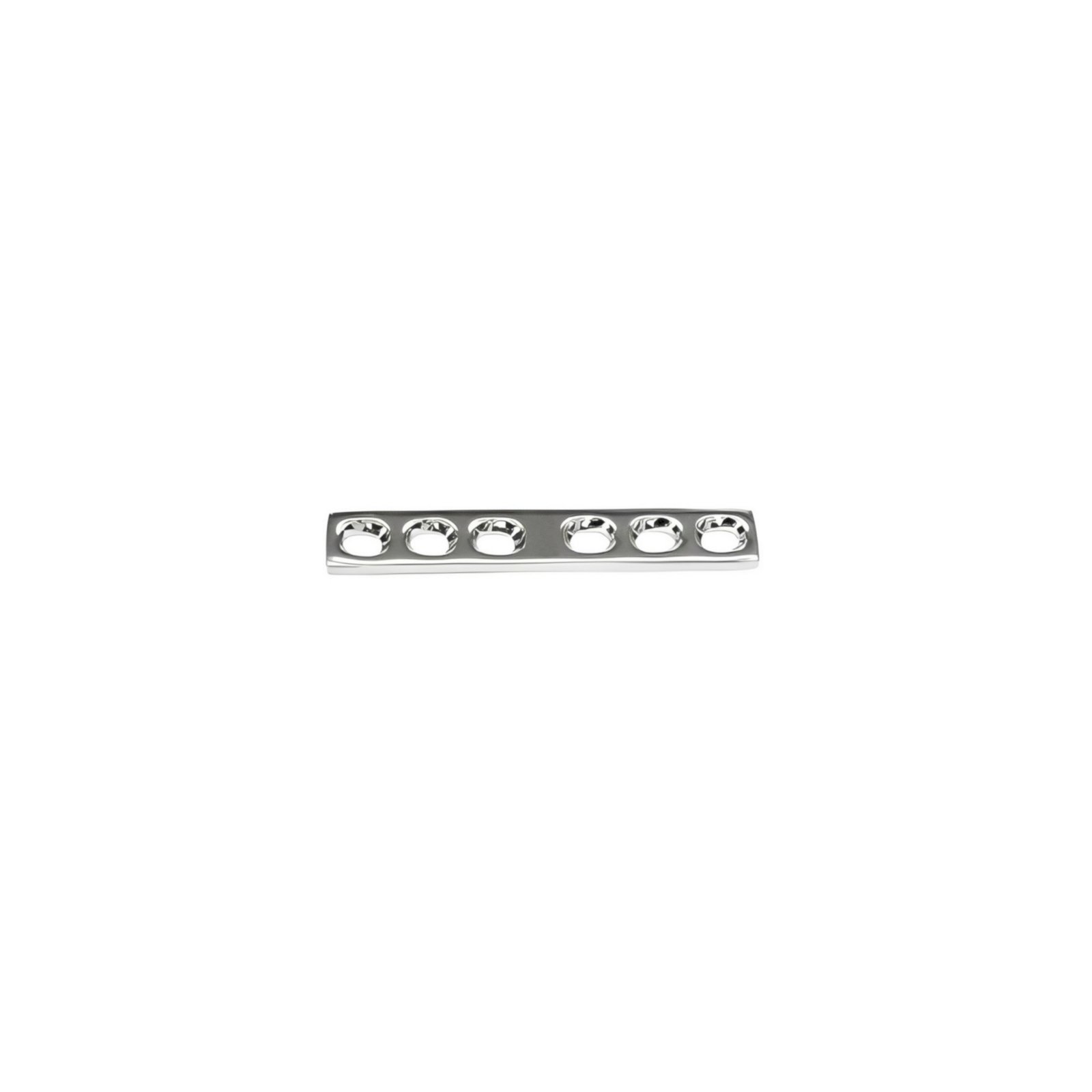

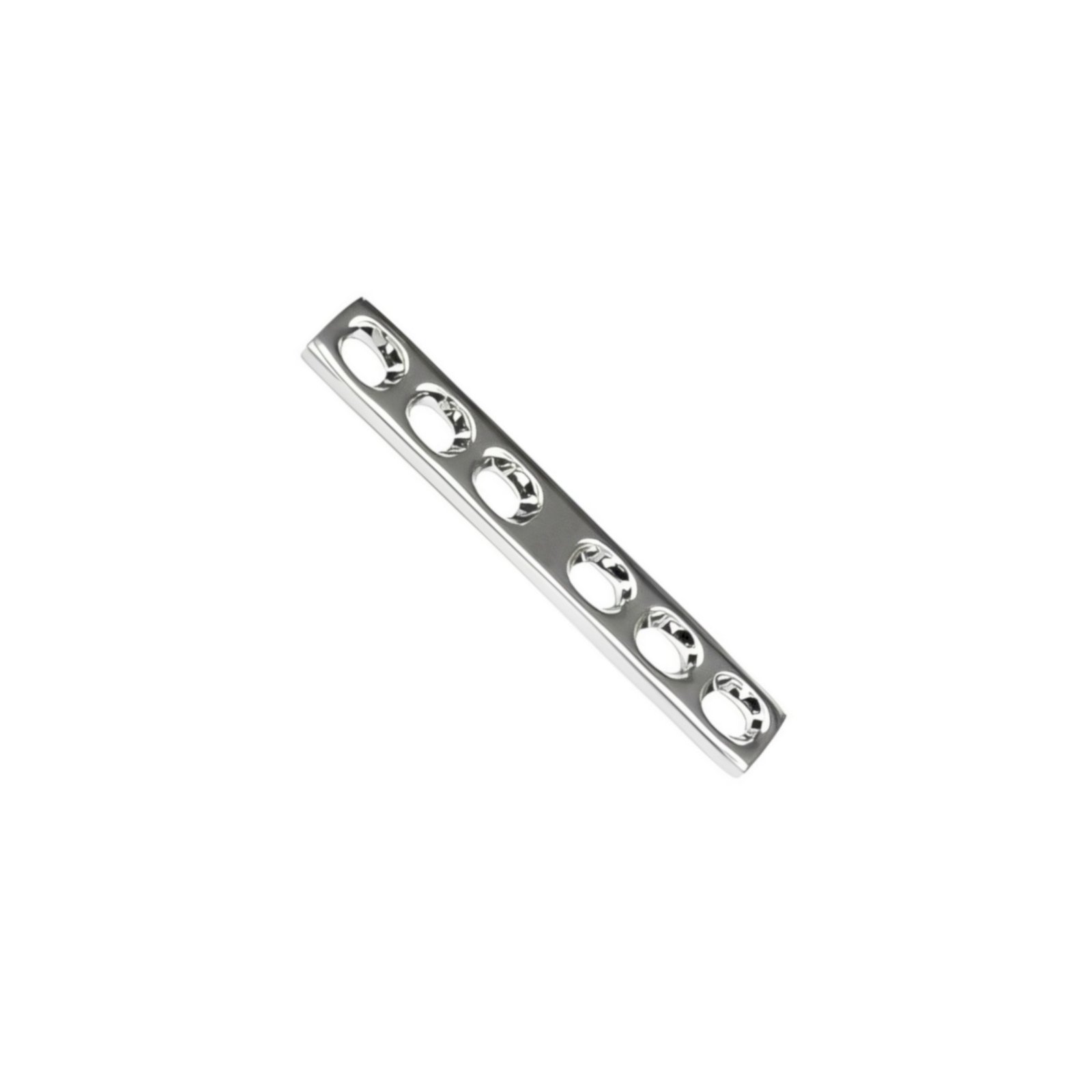

The Ø3.5 mm Veterinary Small DCP (Dynamic Compression Plate) is a precision-engineered orthopedic implant designed for use in small animal fracture fixation. Ideal for canine and feline orthopedic procedures, this plate is manufactured from medical-grade Stainless Steel or Titanium, offering excellent biocompatibility, strength, and resistance to corrosion. Its dynamic compression design allows axial compression across fracture sites, enhancing bone healing and mechanical stability. The plate’s low-profile and anatomically contoured structure minimizes soft tissue irritation while ensuring strong fixation with 3.5 mm cortical screws. It’s ideal for long bone fractures, osteotomies, and reconstructive procedures in small animals.
+ Indications
- Fracture Fixation :Used to stabilize fractures in radius, ulna, tibia, femur, or humerus in small animals.
- Corrective Osteotomies : Ideal for angular limb deformity corrections or limb lengthening procedures.
- Reconstructive Surgeries :Applied in surgeries following trauma, tumor resection, or congenital deformities.
- Long Bone Support : Provides rigid fixation in long bones for animals weighing up to 30 kg or more.
- Post-Traumatic Realignment :Maintains anatomical alignment after severe bone injuries.
- Veterinary Teaching & Clinical Use : Widely used in veterinary schools, referral hospitals, and animal clinics for orthopedic training and procedures.
+ Key Features
- Dynamic Compression Design : Promotes axial load transfer and direct bone-to-bone compression for faster healing.
- Ø3.5 mm Screw Compatibility :Designed to work with 3.5 mm cortical screws for optimal fixation in small animal bones.
- Low-Profile Construction :Minimizes soft tissue interference and post-operative complications.
- Precision Machined : High-quality finish ensures perfect plate-to-bone contact and reduces intraoperative time.
- Multiple Hole Configuration : Allows flexible placement and stabilization options during complex fractures.
- Veterinary-Specific Design : Tailored to the anatomy of dogs, cats, and other small animals.
- Corrosion-Resistant Material : Available in Titanium or Stainless Steel for biocompatibility and long-term performance.
- ISO and CE Certified : Meets international standards for veterinary orthopedic implants.
Product Ordering
| HOLES | Length (mm) | CAT NO. (SS) | CAT NO. (TI) |
|---|---|---|---|
| 2 | 25 | 9038SS02 | 9038TI02 |
| 3 | 37 | 9038SS03 | 9038TI03 |
| 4 | 49 | 9038SS04 | 9038TI04 |
| 5 | 61 | 9038SS05 | 9038TI05 |
| 6 | 73 | 9038SS06 | 9038TI06 |
| 7 | 85 | 9038SS07 | 9038TI07 |
| 8 | 97 | 9038SS08 | 9038TI08 |
| 9 | 109 | 9038SS09 | 9038TI09 |
| 10 | 121 | 9038SS10 | 9038TI10 |
| 11 | 133 | 9038SS11 | 9038TI11 |
| 12 | 145 | 9038SS12 | 9038TI12 |
