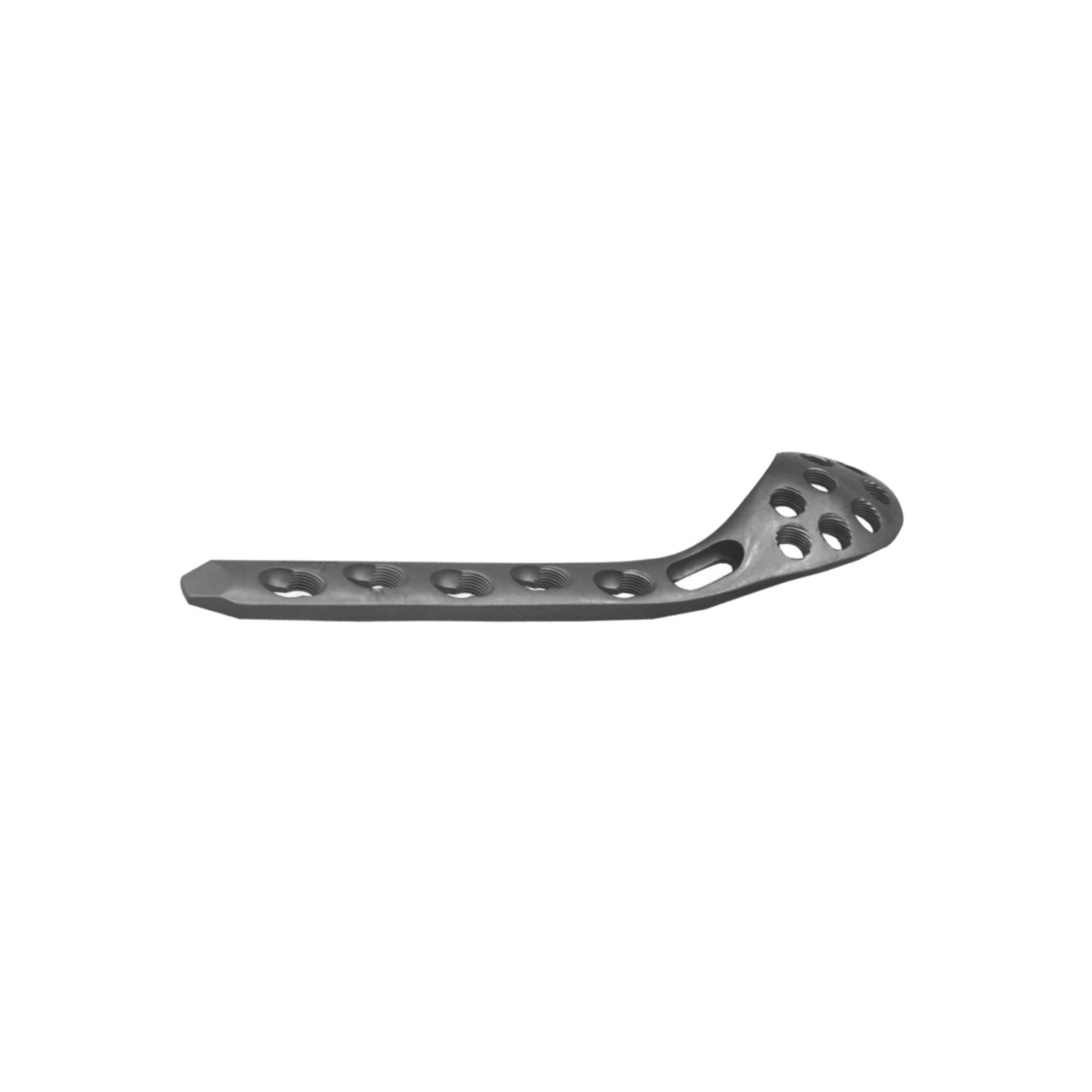

5.0MM Antero Medical Distal Femur LCP

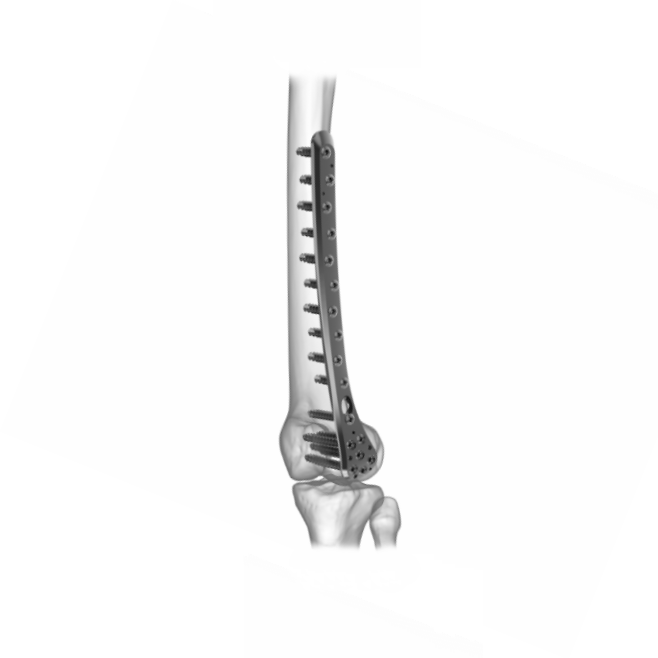

The 5.0mm Antero-Medial Distal Femur Locking Compression Plate (LCP) is a pre-contoured orthopedic implant designed to anatomically fit the antero-medial surface of the distal femur. It is intended for the stable fixation of complex distal femoral fractures, particularly in cases requiring medial column support, such as periprosthetic fractures, bicondylar fractures, and osteoporotic bone conditions.
Engineered with combi-holes for dual screw options—locking and cortical—the plate allows surgeons to apply both compression and angular stability techniques in a single construct. Its low-profile design and rounded edges help minimize soft tissue irritation, while multiple distal screw trajectories offer enhanced fixation in the femoral condyles.
Available in various lengths and hole configurations, the Ø5.0mm Antero-Medial Distal Femur LCP provides a versatile and robust solution for complex distal femoral reconstruction, especially when used in dual plating techniques alongside lateral plates.
- Distal femur fractures, especially:
- Extra-articular (AO/OTA 33-A)
- Partial articular (33-B)
- Complete articular fractures (33-C)
- Periprosthetic distal femoral fractures, particularly medial or antero-medial fractures adjacent to total knee arthroplasty.
- Osteoporotic bone fractures in elderly patients, where locking constructs offer improved fixation.
- Comminuted and segmental distal femur fractures requiring medial support.
- Nonunion or malunion of distal femur, especially when medial column stabilization is necessary.
- Corrective osteotomies involving the distal femur with a need for medial buttress support.
- Polytrauma cases with complex femoral fractures needing enhanced stability.
- Anatomically Contoured Antero-Medial Design
- Tailored to fit the antero-medial aspect of the distal femur, minimizing the need for intraoperative bending and improving fixation accuracy.
- Locking Screw Compatibility (Ø5.0mm)
- Accepts Ø5.0mm locking screws for angular stability, essential in osteoporotic bone or multi-fragmentary fractures.
- Multiple Screw Trajectories in Distal Segment
- Allows for secure fixation in the distal femoral condyles with options for diverging or converging screw angles.
- Low-Profile and Tapered Plate Ends
- Designed to reduce soft tissue irritation and ease of submuscular insertion, enhancing patient comfort postoperatively.
- Combi-Hole Technology
- Enables use of both cortical and locking screws in the shaft, offering flexibility for compression or bridging techniques. High-Strength Material Options Available in stainless steel or titanium alloys for optimal strength, biocompatibility, and surgeon preference.
- Medial Column Support for Dual Plating
- Ideal for use in conjunction with lateral distal femur plates in bicondylar or highly unstable fracture patterns.
- Various Plate Lengths and Hole Counts
- Available in a range of sizes to accommodate different patient anatomies and fracture configurations.
Product Ordering
| HOLES | LEFT | RIGHT | ||
|---|---|---|---|---|
| SS | TI | SS | TI | |
| 3 | 1075SS03 | 1075TI03 | 1076SS03 | 1076TI03 |
| 4 | 1075SS04 | 1075TI04 | 1076SS04 | 1076TI04 |
| 5 | 1075SS05 | 1075TI05 | 1076SS05 | 1076TI05 |
| 6 | 1075SS06 | 1075TI06 | 1076SS06 | 1076TI06 |
| 7 | 1075SS07 | 1075TI07 | 1076SS07 | 1076TI07 |
