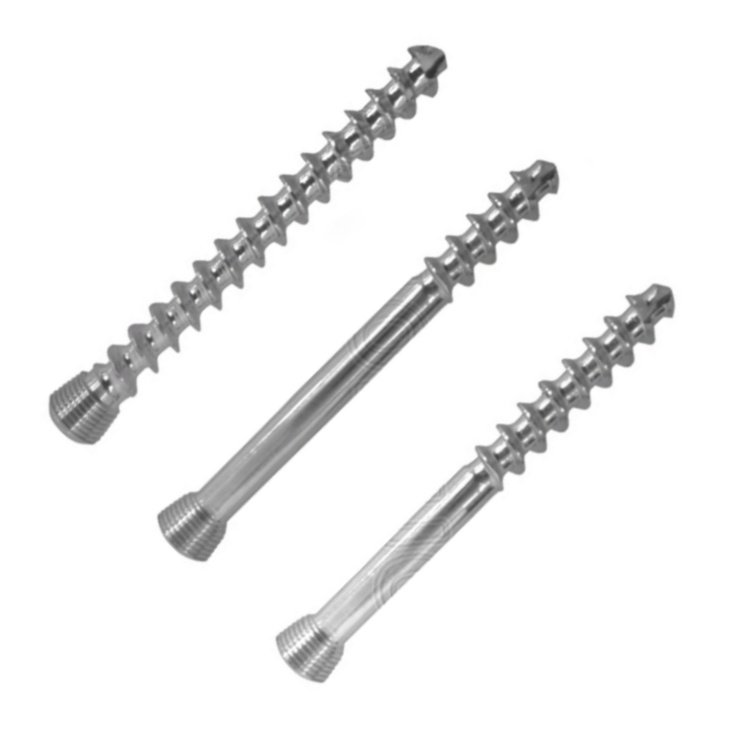

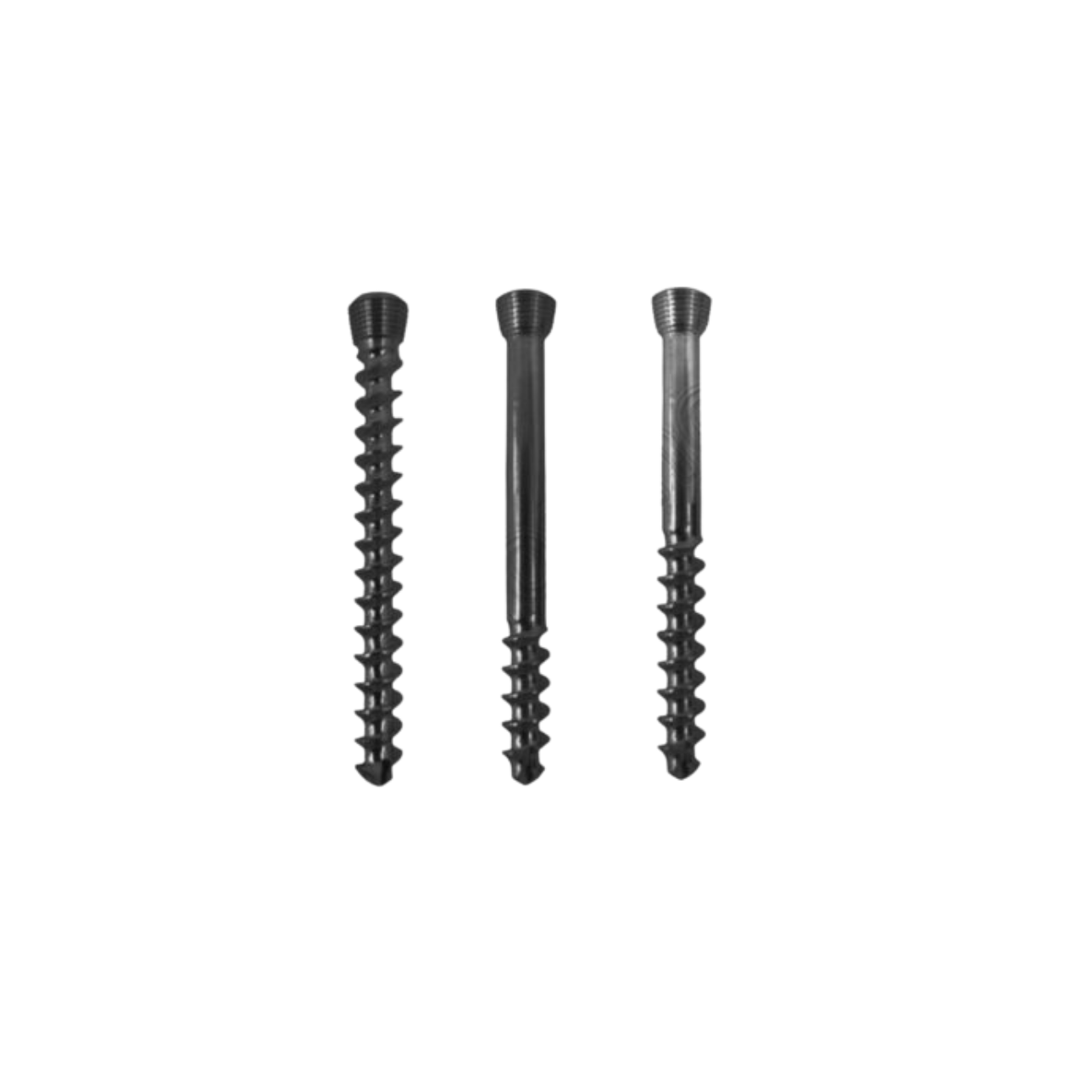

5.0MM Vet Cancellous Locking Screw | Full Thread | 32MM Thread | 16MM Thread



The 5.0 mm Veterinary Cancellous Locking Screw is a large-diameter, partially or fully threaded orthopedic screw designed specifically for veterinary applications involving soft, cancellous bone—typically in the metaphyseal regions of long bones in medium to large animals (e.g., large breed dogs, livestock). Constructed from biocompatible titanium alloy or stainless steel, the screw features a coarse thread profile that provides enhanced grip in spongy, cancellous bone, minimizing the risk of pullout. It also includes a locking head, which allows it to thread securely into a locking plate, forming a fixed-angle construct for added mechanical stability—especially useful in osteoporotic bone or multi-fragment fractures. The Ø5.0 mm screw is cannulated in some systems to allow guided insertion over a K-wire and may come in a self-tapping version to reduce operative time.
- Metaphyseal and Epiphyseal Fractures – Ideal for stabilizing fractures in cancellous bone regions such as distal femur, proximal tibia, or humerus.
- Locking Plate Fixation – Used with locking plates to form angular stable constructs, especially in non-load-sharing fracture patterns.
- Osteoporotic or Poor-Quality Bone – The coarse threads ensure strong engagement in fragile or soft bone, preventing screw loosening.
- Large Breed Small Animal Surgery – Suitable for large dogs or exotic veterinary patients requiring high-strength fixation.
- Periarticular Fractures – Offers secure fixation in joints where bone density is lower, and screw pull-out risk is higher.
- Bridge Plating or Comminuted Fractures – Used in combination with locking plates to maintain rigid fixation without relying on bone compression.
- Revision or Rescue Procedures – Provides strong secondary fixation in cases where primary cortical screws have failed or loosened.
- Constructed from biocompatible titanium alloy or stainless steel, the screw features a coarse thread profile that provides enhanced grip in spongy, cancellous bone, minimizing the risk of pullout. It also includes a locking head, which allows it to thread securely into a locking plate, forming a fixed-angle construct for added mechanical stability—especially useful in osteoporotic bone or multi-fragment fractures.
- The Ø5.0 mm screw is cannulated in some systems to allow guided insertion over a K-wire and may come in a self-tapping version to reduce operative time.
Product Ordering
| LENGTH (MM) | CAT NO. |
|---|---|
| 5.0MM Vet Cancellous Locking Screw | Full Thread | |
| 25 | 9226TI25 |
| 30 | 9226TI30 |
| 35 | 9226TI35 |
| 40 | 9226TI40 |
| 45 | 9226TI45 |
| 50 | 9226TI50 |
| 55 | 9226TI55 |
| 60 | 9226TI60 |
| 65 | 9226TI65 |
| 70 | 9226TI70 |
| 75 | 9226TI75 |
| 80 | 9226TI80 |
| 85 | 9226TI85 |
| 90 | 9226TI90 |
| 95 | 9226TI95 |
| 100 | 9226TI100 |
| 105 | 9226TI105 |
| 110 | 9226TI110 |
| 115 | 9226TI115 |
| 120 | 9226TI120 |
| 5.0MM Vet Cancellous Locking Screw | 32MM Thread | |
| 25 | 9228TI25 |
| 30 | 9228TI30 |
| 35 | 9228TI35 |
| 40 | 9228TI40 |
| 45 | 9228TI45 |
| 50 | 9228TI50 |
| 55 | 9228TI55 |
| 60 | 9228TI60 |
| 65 | 9228TI65 |
| 70 | 9228TI70 |
| 75 | 9228TI75 |
| 80 | 9228TI80 |
| 85 | 9228TI85 |
| 90 | 9228TI90 |
| 95 | 9228TI95 |
| 100 | 9228TI100 |
| 105 | 9228TI105 |
| 110 | 9228TI110 |
| 115 | 9228TI115 |
| 120 | 9228TI120 |
| 5.0MM Vet Cancellous Locking Screw | 16MM Thread | |
| 25 | 9230TI25 |
| 30 | 9230TI30 |
| 35 | 9230TI35 |
| 40 | 9230TI40 |
| 45 | 9230TI45 |
| 50 | 9230TI50 |
| 55 | 9230TI55 |
| 60 | 9230TI60 |
| 65 | 9230TI65 |
| 70 | 9230TI70 |
| 75 | 9230TI75 |
| 80 | 9230TI80 |
| 85 | 9230TI85 |
| 90 | 9230TI90 |
| 95 | 9230TI95 |
| 100 | 9230TI100 |
| 105 | 9230TI105 |
| 110 | 9230TI110 |
| 115 | 9230TI115 |
| 120 | 9230TI120 |
