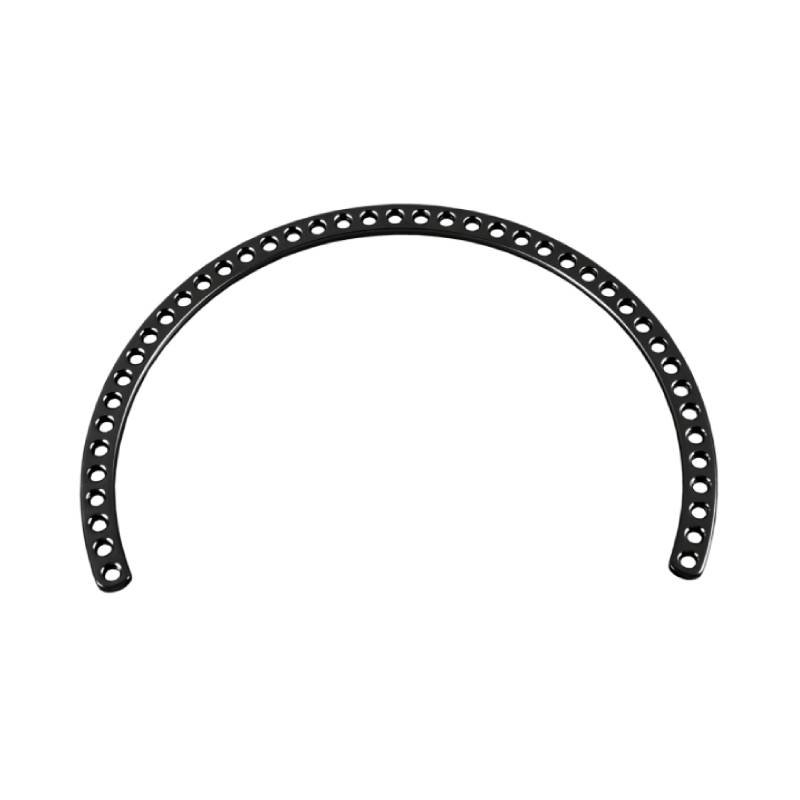

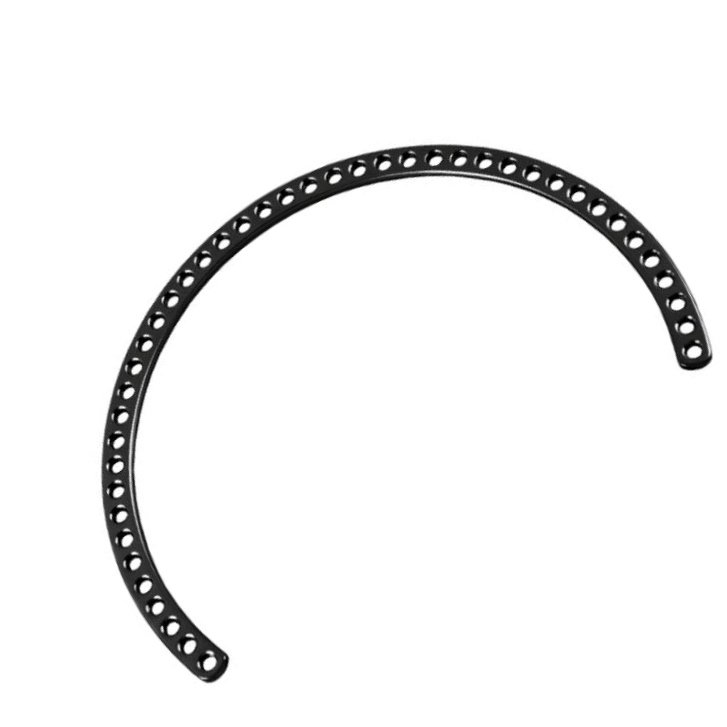

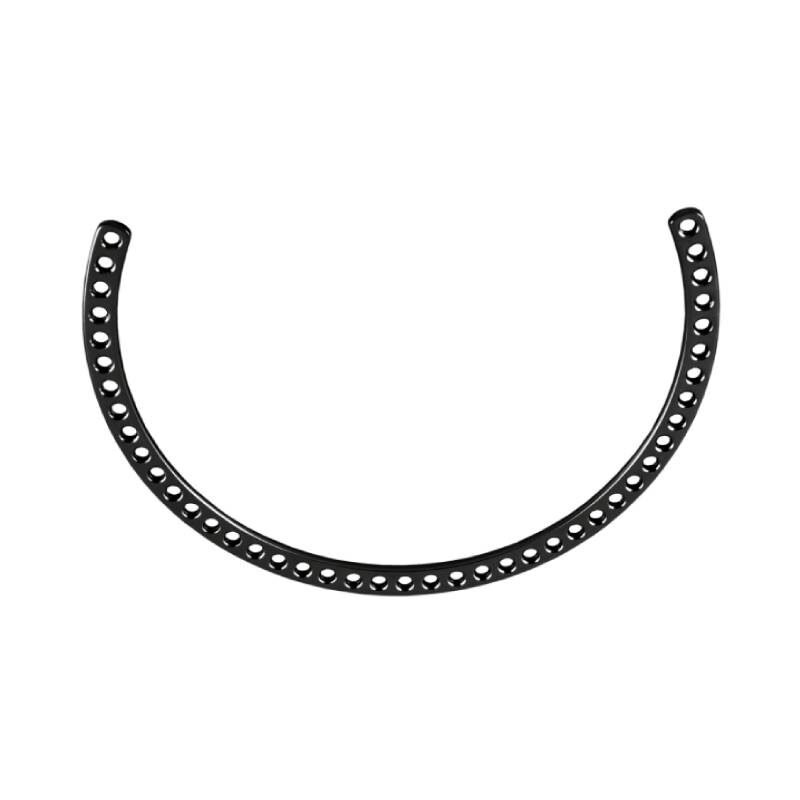

5/8th Ring -Aluminium
The 5/8th Ring – Aluminium is a semi-segmented component used in modular external fixator frames such as the Ilizarov system. Representing five-eighths (5/8) of a full ring, this design provides a balance between support and open access, enabling clear visibility and space for surgical intervention, wound care, or comfort in long-term cases. Constructed from high-strength anodized aluminium, this ring offers a significant weight reduction compared to stainless steel counterparts, without compromising structural rigidity. It is particularly suitable for pediatric, elderly, or long-duration orthopedic applications. Material: Anodized Aluminium Alloy (commonly 6061-T6 or equivalent) Offers a strong strength-to-weight ratio and corrosion resistance Finish: Satin or matte anodized surface Non-reflective and smooth, suitable for the surgical field Fully autoclavable and biocompatible
- Circular External Fixation Frames (Ilizarov, Taylor Spatial Frame, etc.) – Supports modular frame construction for fracture fixation, limb lengthening, or deformity correction.
- Pediatric Orthopedics – Preferred for children due to lightweight design and ease of use.
- Soft Tissue Management – Allows partial coverage to maintain access to open wounds, flaps, or surgical incisions.
- Imaging Support – Useful in cases requiring frequent radiographic evaluation, with reduced artifact generation.
- Custom External Fixator Designs – Offers surgical flexibility in building asymmetric or patient-specific frames.
- Lightweight & Durable – Ideal for reducing frame load without sacrificing mechanical integrity.
- 5/8th Geometry – Offers partial limb coverage, leaving room for access to surgical or wound areas.
- Pre-Drilled Holes – Compatible with standard wires, pins, and connector elements.
- Corrosion-Resistant – Anodized surface protects against wear and repeated sterilization.
- Modular Compatibility – Connects easily with half, 3/4, full rings and hybrid constructs.
- Enhanced Patient Comfort – Especially beneficial in pediatric or long-term frame use.
- Radiolucent-Friendly – Minimal interference with X-rays or fluoroscopy.
Product Ordering
| CAT NO. | Size |
|---|---|
| 8105EF200 | 200 MM |
| 8105EF220 | 220 MM |
| 8105EF240 | 240 MM |
