Automatic Tourniquet System
+ Key Features
- Portability: Mobile, lightweight & easy to carry tourniquet system.
- System Controls: Controlled with microprocessor to match innovative technology.
- Rapid Cuff Inflation: Inflates a typical 34” thigh cuff in under 10 seconds. Supports up to 500 mmHg.
- High Definition LCD Display: Segmented character LCD display for excellent visibility.
- Extended pressure interlock / Advanced Safety Features : Visual & Audio Safety alarms for extended time then the stipulated set timings.
- Long battery Life: Inbuilt battery backup which can be utilized at the time of power failure up to 8 hours.
- User interfac: Easy to operate programs with one pre-defined function.
- Aesthetics : State-of-art ergonomic design which enhances the class of Operation room.
- Maintenance of pressure during power failure: An innovative closed solenoid system maintains the set pressure during sudden power failure.
- Feather Touch Panel: Highly sensitive feather touch panel with effective feather touch.
- Highly calibrated & Tested: The AMT 500 Automatic tourniquet system is highly calibrated & tested before the final use. Leakage testes on all the accessories.
-
Online Pressure/Time Setting
:
it is possible to change the setting of pressure, time, inflate, deflate in working mode. -
Accessories:
medical grade autoclavable silicon tubing & set of imported reusable cuffs. - A safety interlocking connector system with zero leakage.

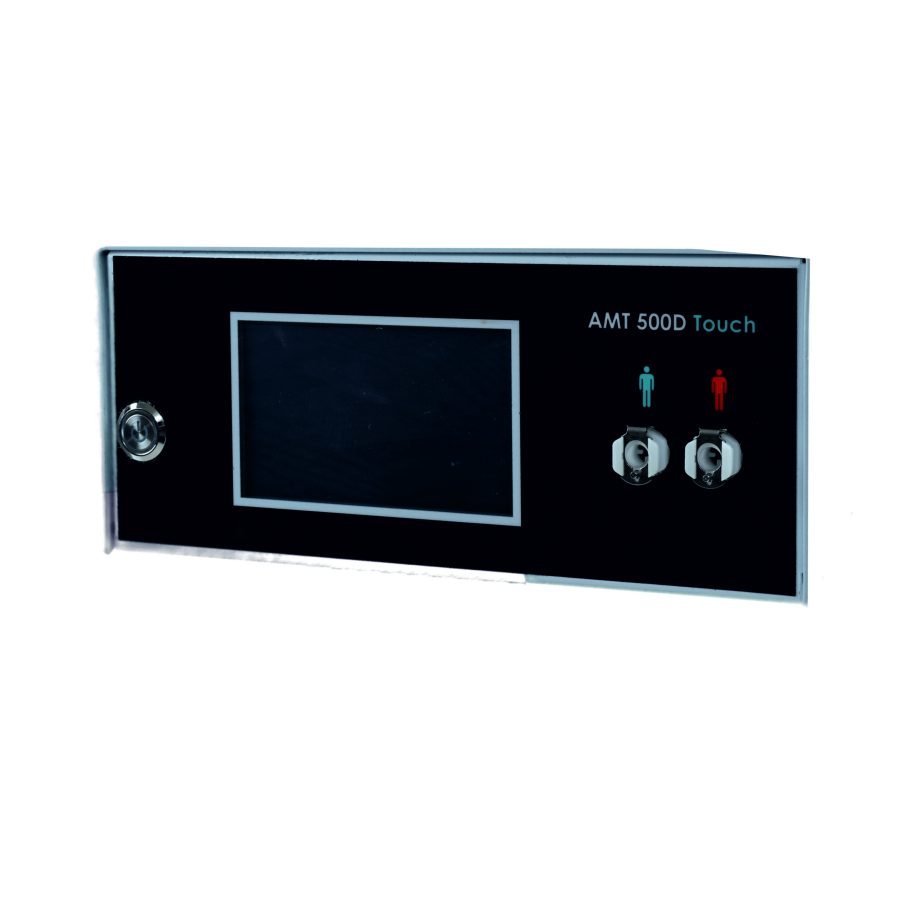

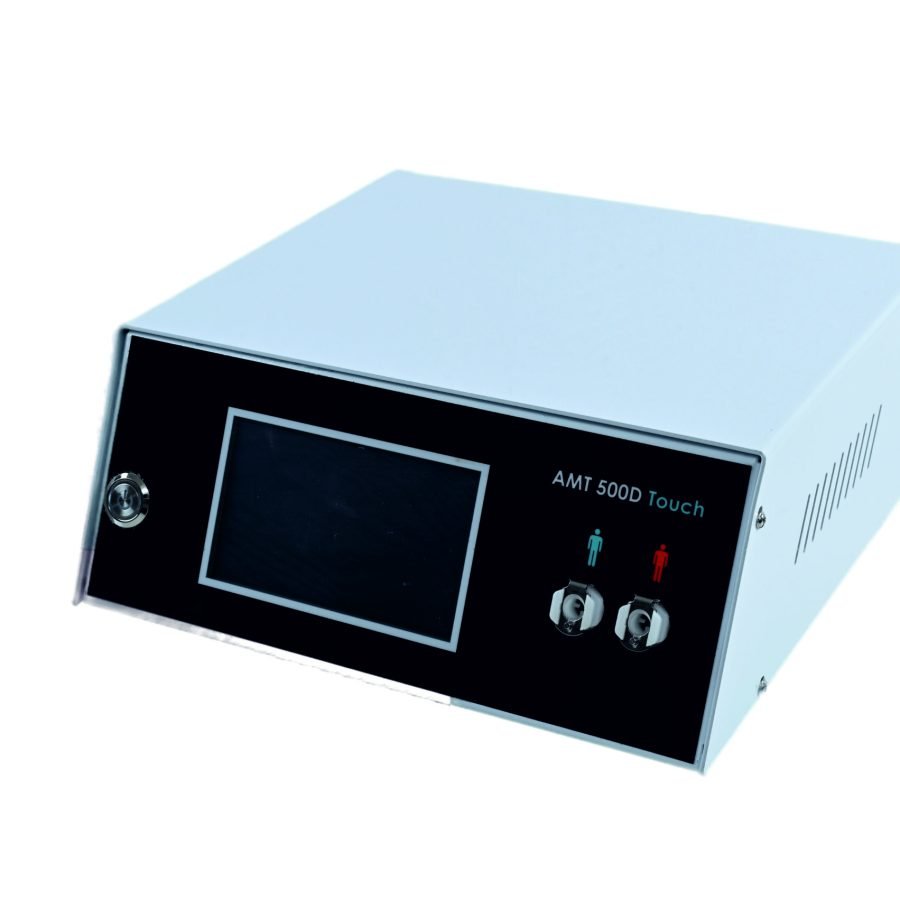

| Model No | AMT 500 | AMT 500 Touch | AMT 500D | AMT 500D Touch |
|---|---|---|---|---|
| Number of Ports | Single | Single | Dual | Dual |
| Number of Potential Cuffs | Single Cuff | Single Cuff | Dual Cuff | Dual Cuff |
| User Interface | Feather Touch Buttons | Touch Screen | Feather Touch Buttons | Touch Screen |
| Display Type | Backlit LCD | 5” Color TFT | Backlit LCD | 5” Color TFT |
| Cuff Pressure | 0–500 mmHg | 0–500 mmHg | 0–500 mmHg | 0–500 mmHg |
| Pressure Accuracy | ± 2 mmHg | ± 2 mmHg | ± 2 mmHg | ± 2 mmHg |
| Audio Alarm Timer | 0–240 Minutes | 0–240 Minutes | 0–240 Minutes | 0–240 Minutes |
| Inflation | < 10 Seconds | < 10 Seconds | < 10 Seconds | < 10 Seconds |
| Battery Type | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion |
| Battery Backup | Approx. 8 Hours | Approx. 6 Hours | Approx. 8 Hours | Approx. 6 Hours |
| Dimension | 20 cm x 20 cm x 76 cm | 27 cm x 23 cm x 12 cm | 27 cm x 23 cm x 10 cm | 27 cm x 23 cm x 12 cm |
| Weight | < 1.5 kg | < 2.5 kg | < 3 kg | < 2.5 kg |
| Supply Voltage | 240 V AC | 240 V AC | 240 V AC | 240 V AC |
| POP Technology | No | Yes | No | Yes |
| Warnings | Visual & Audible | Visual & Audible | Visual & Audible | Visual & Audible |
| Self-Testing | No | Yes | No | Yes |
| Standard Accessories | 3 Reusable Cuffs + 1 Hose | 5 Reusable Cuffs + 2 Hose | 3 Reusable Cuffs + 1 Hose | 5 Reusable Cuffs + 2 Hose |
| Positive Interlocking Hose | Yes | Yes | Yes | Yes |
| Packaging Type | Corrugated Box | Customized Carry Case | Corrugated Box | Customized Carry Case |
