Central Clamp

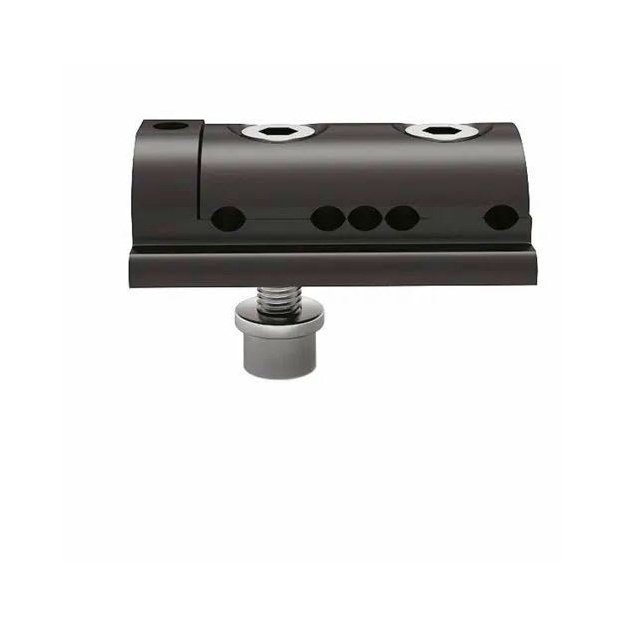

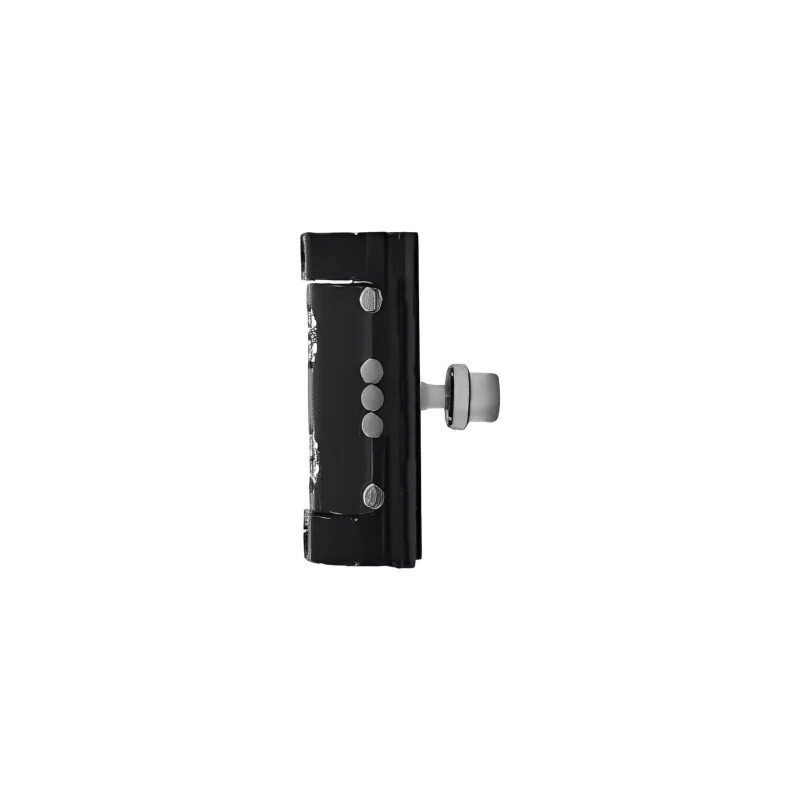

Central Clamp for External Fixator – High Precision Bone Stabilization The Central Clamp is a vital component of external fixation systems, engineered to provide rigid connection and alignment between fixation rods and bone pins such as Schanz screws. It acts as the central structural hub of an orthopedic frame, delivering strength, flexibility, and precision in managing complex or multiplanar fractures.
Ideal for trauma surgeries, the clamp ensures accurate anatomical positioning, with multi-port and multi-jaw designs for a customized fit during bone stabilization.
- Multi-Port Configuration:
Equipped with three or more ports to accommodate rods, pins, or auxiliary clamps
Supports advanced external fixator assembly for complex fracture patterns - Secure Locking Mechanism:
Three-jaw or four-jaw system offers a firm grip on Schanz pins
Allows independent tightening of rail and pin interfaces
Some variants include ball joints for angular and multidirectional adjustments - Pin and Rod Compatibility:
Designed for use with transfixation pins (Schanz screws)
Compatible with carbon fiber, stainless steel, or aluminum connecting rods
Fits rod diameters of 10 mm to 11 mm and pin sizes 4.0 mm to 6.0 mm - Durable Material Construction:
Manufactured from SURGICAL-GRADE STAINLESS STEEL or ALUMINUM ALLOY
Optional anodized or powder-coated finish for sterilization efficiency and corrosion resistance
Lightweight yet structurally strong - Why Choose Kinein Medtech’s Central Clamp?
Designed for easy assembly and real-time adjustability during surgery
Built to withstand repeated sterilization cycles
Engineered to meet international standards (ISO 13485, CE marking)
Trusted by orthopedic surgeons for precision and performance
The Central Clamp is a key element in modular external fixation systems, enabling rigid and adjustable frame construction for orthopedic trauma care. Its advanced design supports secure connection between bone pins (such as Schanz screws) and external support rods, making it ideal for a range of complex surgical procedures.
- Connects transfixation pins inserted into the bone to external rods
- Ensures a stable external frame for open fractures, comminuted fractures, and high-energy trauma
- Maintains precise bone alignment during healing
- Enables multi-directional adjustments for correcting angular deformities or rotational misalignment
- Facilitates dynamic frame positioning during post-op management
- Serves as a central anchor in complex fixator configurations—triangular, quadrilateral, or hybrid setups
- Integrates seamlessly with rods, clamps, and half-pins to build customizable orthopedic frames
Product Ordering
| CAT NO. |
|---|
| 8026EF01 |
