Connection Plate With Threaded End

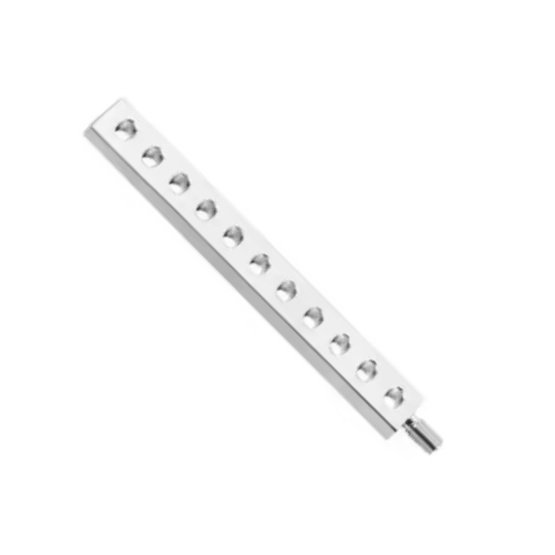

36.Connection Plate With Threaded End .jpg A

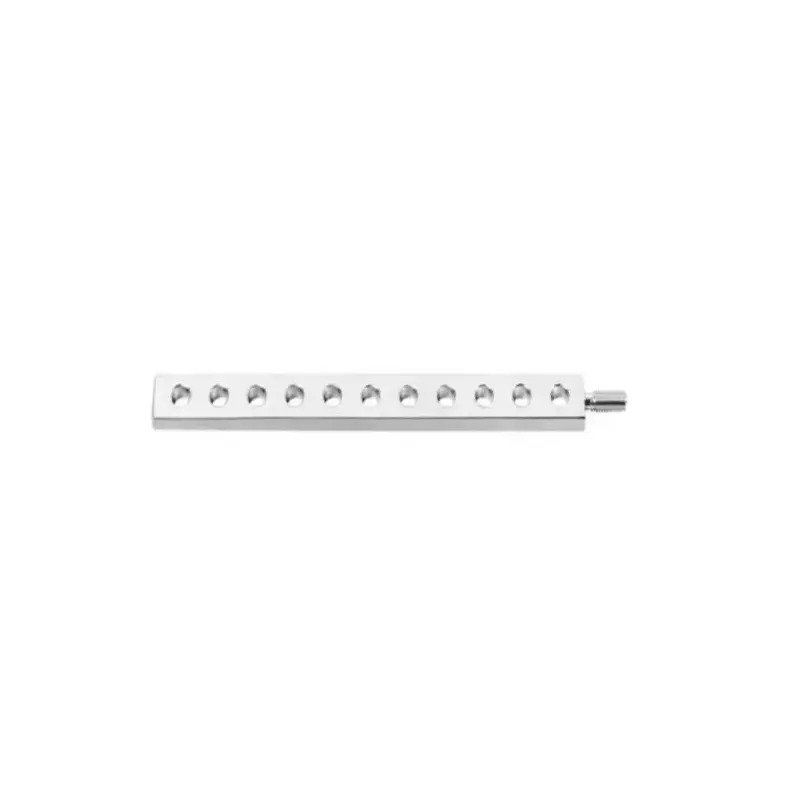

36.Connection Plate With Threaded End (1)

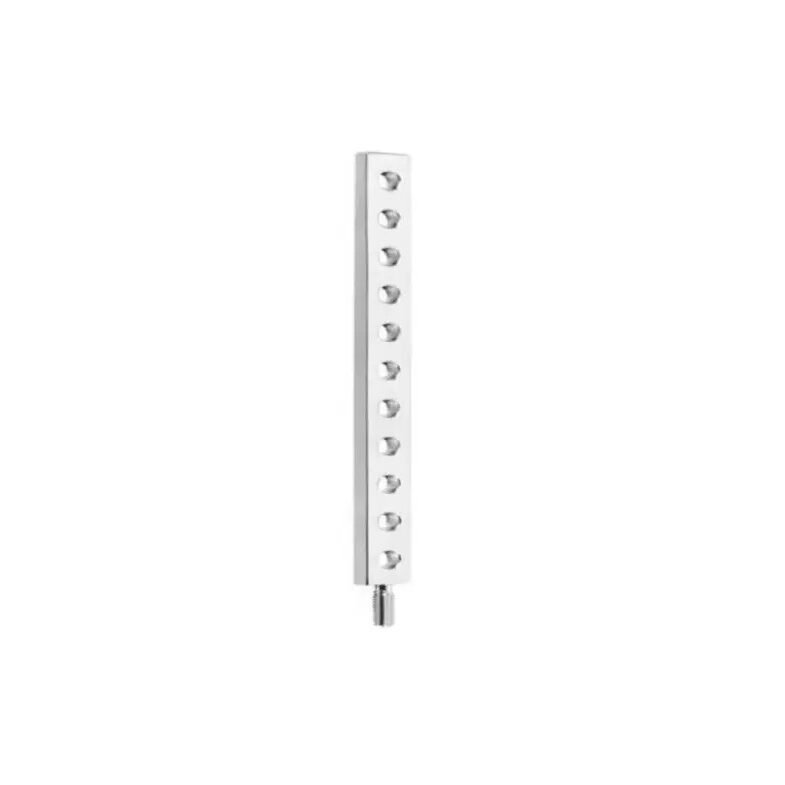

36.Connection Plate With Threaded End - Copy
Accordion Hover Style
+ Description
The Connection Plate with Threaded End is a specialized orthopedic component designed to serve a dual function: connecting structural elements (e.g., rods, clamps, rings) in an external fixator frame and providing a direct threaded interface for secure attachment of other fixation components. One end of the plate features threaded engagement (typically male or female) that can directly accept compatible fixator elements like rods, bolts, or Schanz pin clamps. The opposite end is usually a flat plate with pre-drilled holes or slots, allowing it to be fixed to other structural parts with screws or bolts. This design simplifies frame construction, minimizes the need for multiple connectors, and enhances the stability and modularity of the fixator. Material: Primary Material: Surgical-Grade Stainless Steel (AISI 316L) – known for strength, biocompatibility, and corrosion resistance Optional Material: Anodized Aluminum – lighter alternative for pediatric or non-load-bearing applications Finish: Satin/matte or polished surface Fully autoclavable

Accordion Hover Style with Bullets
+ Indications
  • Direct Rod or Clamp Attachment – Threaded end allows for quick connection to rods, hinges, or clamps without additional joints.
  • Structural Frame Linkage – Connects two or more fixator components across short distances with increased rigidity.
  • Frame Modifications & Extensions – Enables adjustments or extensions in external fixator configurations during treatment.
  • Angular or Offset Construction – Useful in constructing offset angles or multi-level frames.
  • Hybrid Fixator Integration – Functions as a bridge between circular and linear components in hybrid fixators.
Accordion Hover Style with Bullets
+ Key Features
  • Integrated Threaded End – Direct attachment for rods, bolts, or threaded devices.
  • Rigid Plate Body – Provides a strong connection point for adjacent fixator components.
  • Multiple Mounting Holes or Slots – Ensures flexible positioning and secure mounting.
  • Compatible with Modular Systems – Works with standard fixator hardware.
  • Compact Design – Space-saving and ergonomic for patient comfort.
  • Durable & Reusable – Withstands repeated sterilization and surgical use.

Product Ordering

CAT NO.
8132EF01
