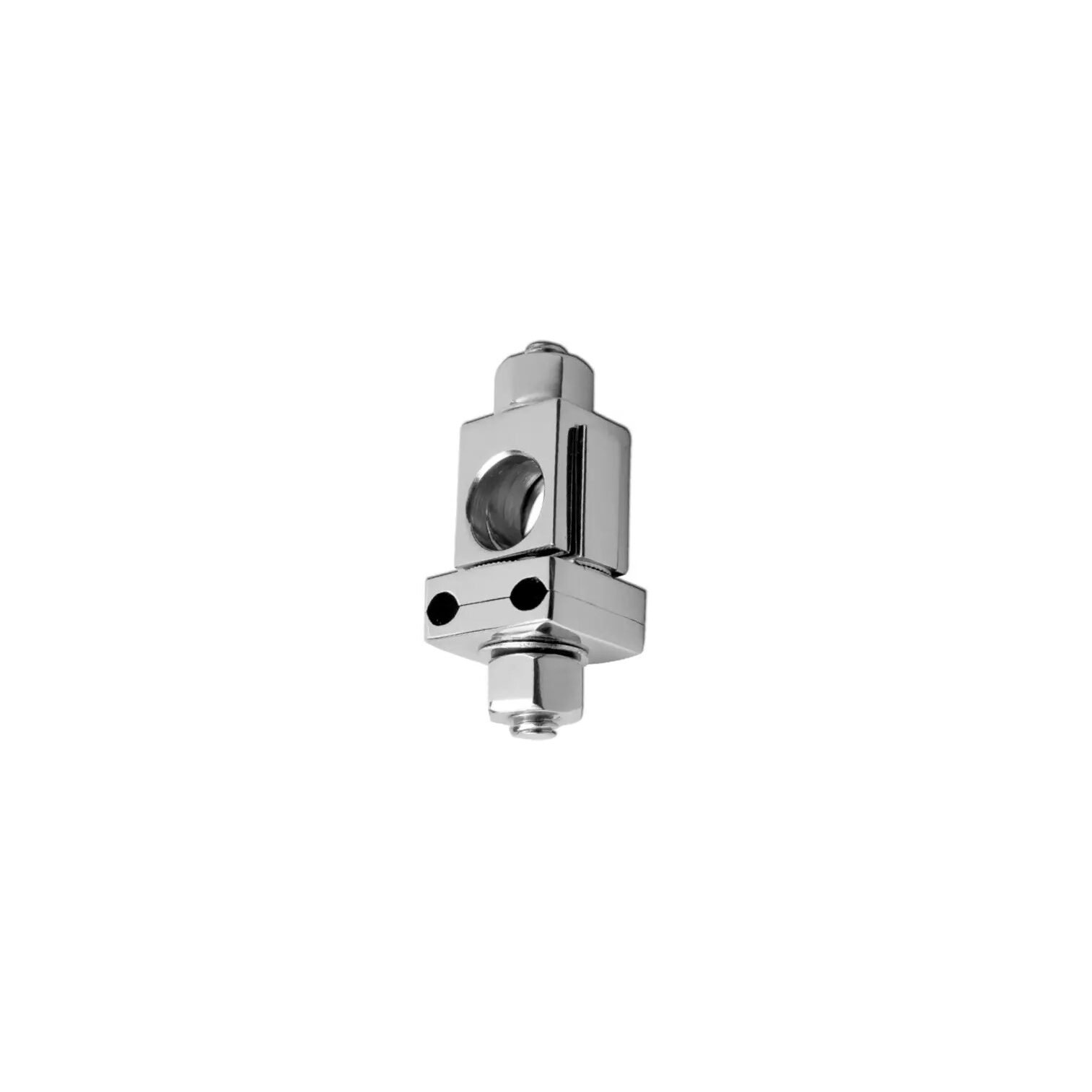

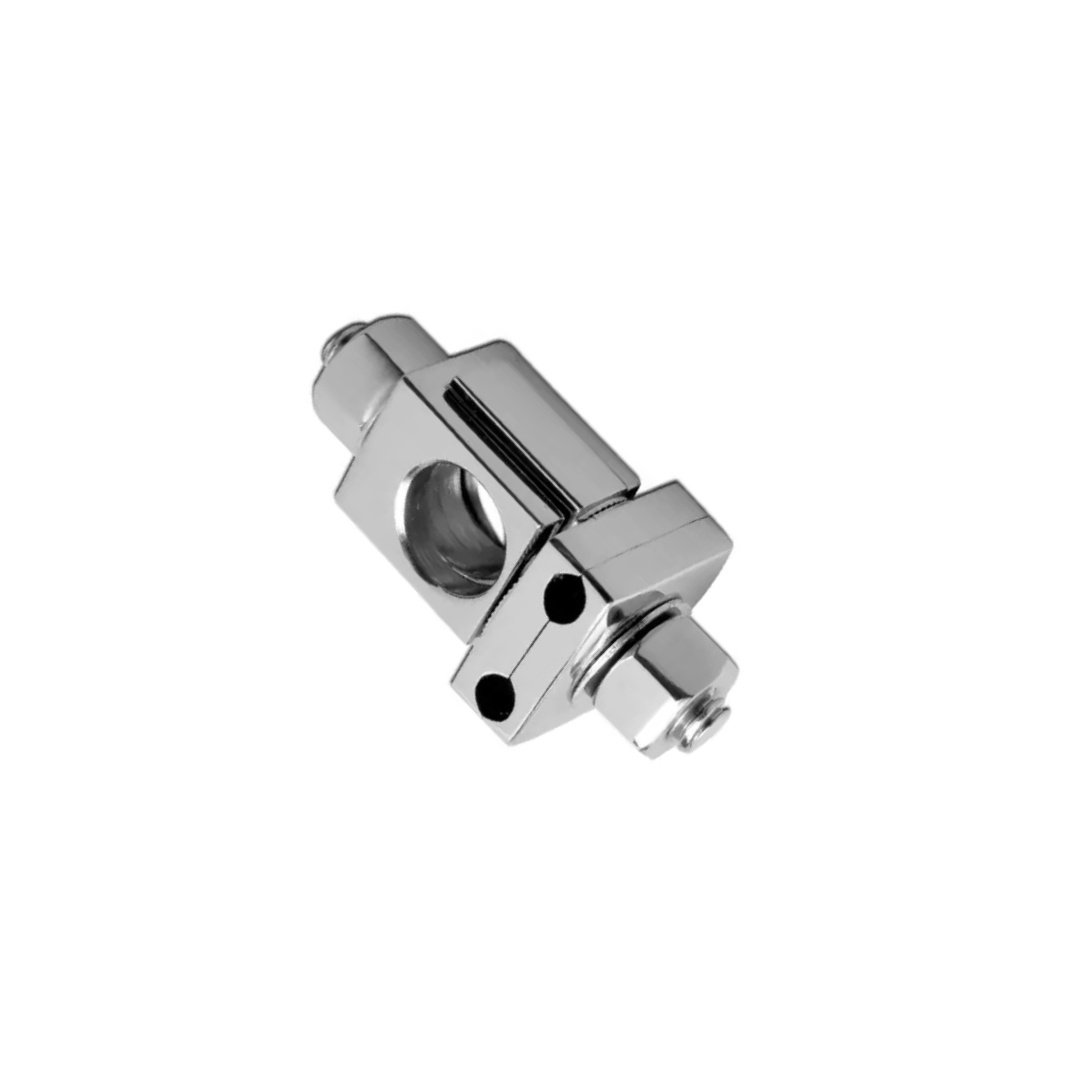

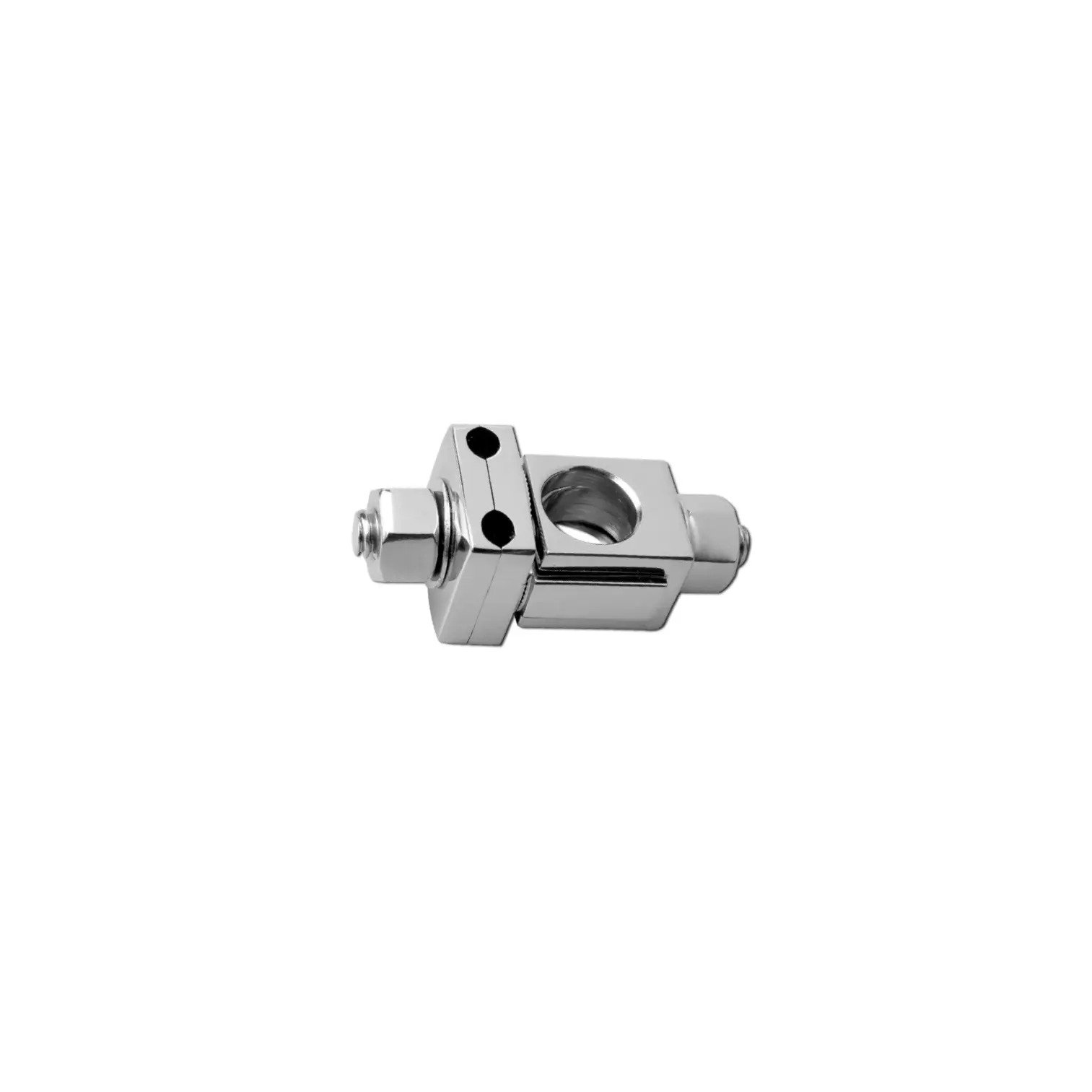

Double Pin Clamp
+ Description
The Double Pin Clamp is a robust orthopedic fixation component designed to secure two Schanz pins simultaneously to an external fixator rod. It is a critical part of external fixator systems used in trauma, deformity correction, and limb lengthening procedures. The design ensures maximum rigidity and stability, minimizing micro-movement at the fracture or osteotomy site for optimal healing. Material: Body: Stainless Steel (AISI 316L – Surgical Grade) Knobs/Handles: Stainless steel or high-impact polymer (depending on design variant) Properties: Corrosion-resistant Biocompatible Fully sterilizable and reusable High fatigue strength and torque resistance
+ Indications
- Used in external fixator constructs for trauma, limb lengthening, and bone transport.
- Allows rigid fixation of two Schanz screws to a single rod.
- Commonly used in Ilizarov, hybrid fixators, and modular fixator systems.
- Provides increased stability at osteotomy or fracture sites.
+ Key Features
- Holds Two Pins – Commonly Ø4.0MM – Ø6.0MM.
- Rod Compatibility – Ø8.0MM or Ø11.0MM (standard sizes).
- Parallel or Angular Pin Placement – Offers flexible configurations.
- Independent Locking – Each pin can be secured and adjusted individually.
- Heavy-Duty Clamping Mechanism – Ensures rigid and stable fixation.
- Smooth, Satin Finish – Reduces glare and facilitates cleaning.
- Reusable & Autoclavable – Suitable for repeated surgical use.
Product Ordering
| CAT NO. |
|---|
| 8001EF03 |
