FIXED LOOP BUTTON

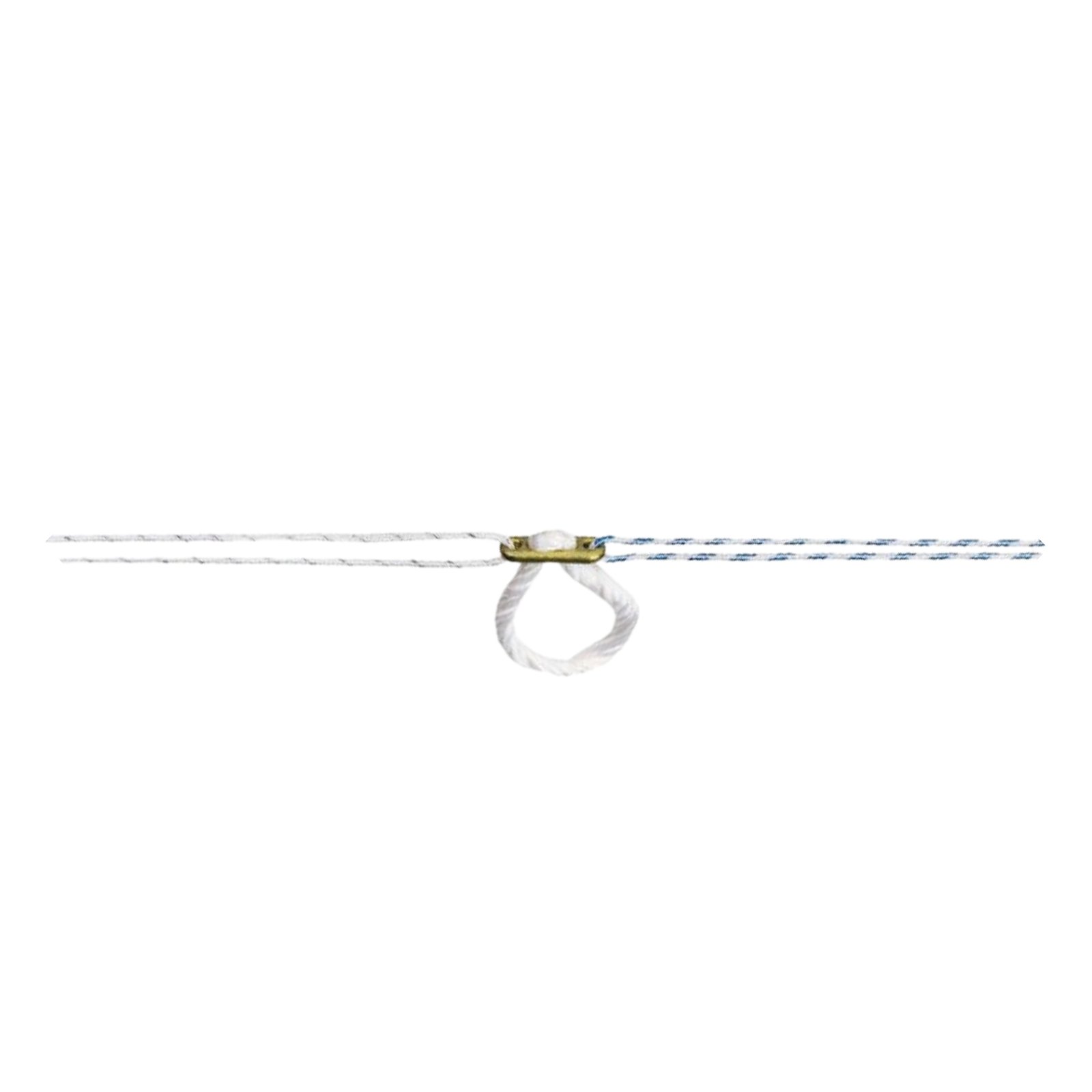

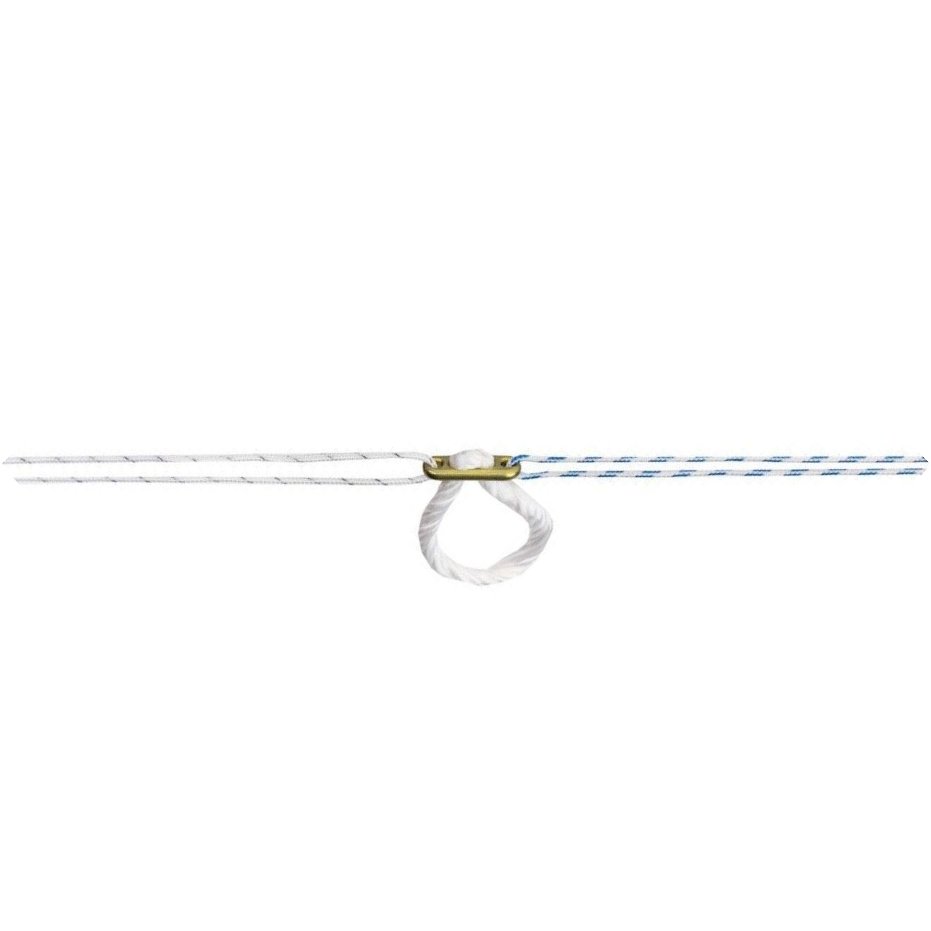

Fixed Loop Button is a continuous loop Suspensory Femoral fixation All Inside ACL reconstruction device made from UHWMPE loop and the oblong shaped button is made from titanium material. The loop is available in various length i.e. 10, 15, 20, 25, 30 and 35mm. The dimension of the button is: L 12mm X W 4.0mm X H 1.5mm. The Fixed Loop Button makes graft fixation stronger and more efficient by eliminating the need for knot tying.
The continuous loop technology allows for a secure fit inside the tunnel, saving time and resources during surgery. Being a continuous loop without any joint, it provides over 1600 N Ultimate Tensile Strength (UTS) which makes it robust any other competitors in the market.
The leading suture (#5 UHMWPE, White/Blue) and flipping suture (#5 UHMWPE, White/Black) are preloaded on the device to ensure precision when pulling and flipping of the button into the intraosseous tunnel for a secure fixation.
Additionally, the 4.5mm endoscopic reamer is available in the instrument set which provides precise drilling of tunnels and ensure the easy movement of the button and loop within the tunnel. This reamer makes the reconstruction of the ACL/PCL faster, safer and more efficient
- Single bundle soft tissue fixation
- Double bundle soft tissue fixation
- Bone-tendon-bige fixation
Product Ordering
| Catalog No | Product Description |
|---|---|
| 4510.10 | Fixed Loop Button, Loop Length 10mm |
| 4510.15 | Fixed Loop Button, Loop Length 15mm |
| 4510.20 | Fixed Loop Button, Loop Length 20mm |
| 4510.25 | Fixed Loop Button, Loop Length 25mm |
| 4510.30 | Fixed Loop Button, Loop Length 30mm |
| 4510.35 | Fixed Loop Button, Loop Length 35mm |
Related Instruments
RELATED INSTRUMENTS
| Catalog No | Product Description |
|---|---|
| 4616.1 | Endoscopic Cannulated Reamer, ∅4. Graft Passing Pin- Beath Pin ∅2.4mm |
