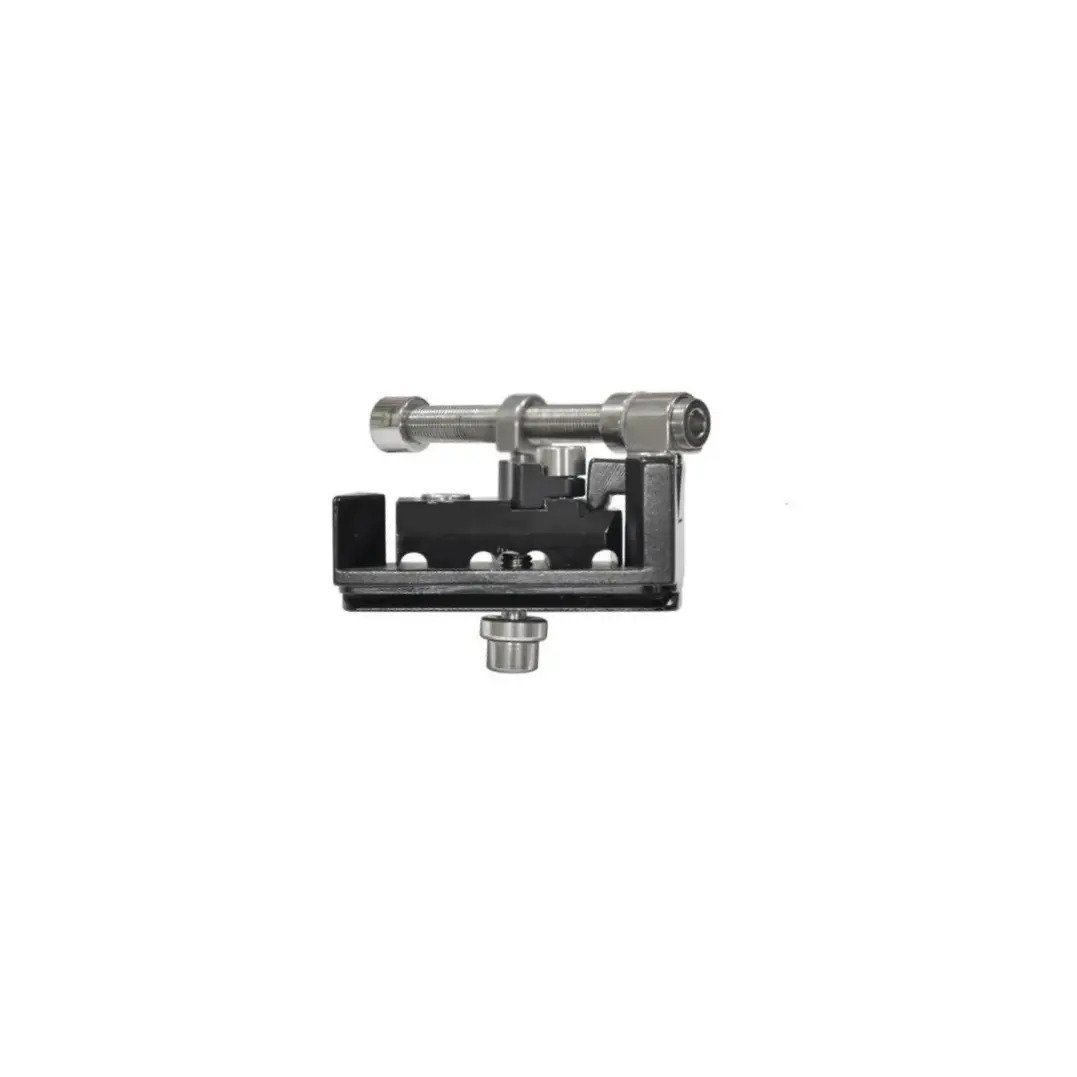

Graduated Swivel Clamp
The Graduated Swivel Clamp is a precision-engineered orthopedic clamp used in external fixator assemblies to allow controlled angular adjustment of rods or pins. It features a swivel joint with graduated angle markings, enabling the surgeon to set and monitor precise orientations during complex frame adjustments or staged deformity corrections.
This clamp is particularly useful when high accuracy is required, such as in bone transport, angular correction, or in cases involving multiple directional alignments.
Manufactured from AISI 316L STAINLESS STEEL for exceptional durability, corrosion resistance, and biocompatibility.
Compatible with TITANIUM SCHANZ PINS and external fixation rods.
Designed for long-term use and repeated sterilization in clinical environments.
- Angular Deformity Correction: Enables controlled correction of bone angles in conditions like valgus, varus, or rotational deformities.
- Bone Transport & Limb Lengthening: Allows adjustable orientation of connecting rods or pins during distraction osteogenesis or segment transport procedures.
- Multi-Planar Fracture Fixation: Useful in treating complex fractures that require stable fixation across different anatomical planes.
- Fine-Tuning External Fixator Frames: Provides surgeons with on-the-spot adjustability during or after surgery without needing to disassemble the entire frame.
- Accurate Frame Reproducibility: The graduated angle scale aids in replicating specific configurations across multiple surgeries or for training/documentation.
- Graduated Angle Markings: Laser-etched or engraved scale on the clamp body allows accurate measurement and replication of angular settings.
- Swivel Mechanism: Enables smooth, multi-directional movement and adjustment of rods or pins within the clamp.
- Locking System: Once the desired angle is achieved, the mechanism can be securely locked in place, preventing unintended movement.
- High-Precision Alignment: Supports exact angular positioning, which is critical in gradual deformity correction or limb lengthening procedures.
- Modular Compatibility: Integrates with standard rail, rod, and pin components in Kinein Medtech’s and other compatible external fixator systems.
- Reusable & Sterilizable: Designed for repeated clinical use, maintaining accuracy and function after multiple sterilization cycles.
Product Ordering
| CAT NO. |
|---|
| 8026EF06 |
