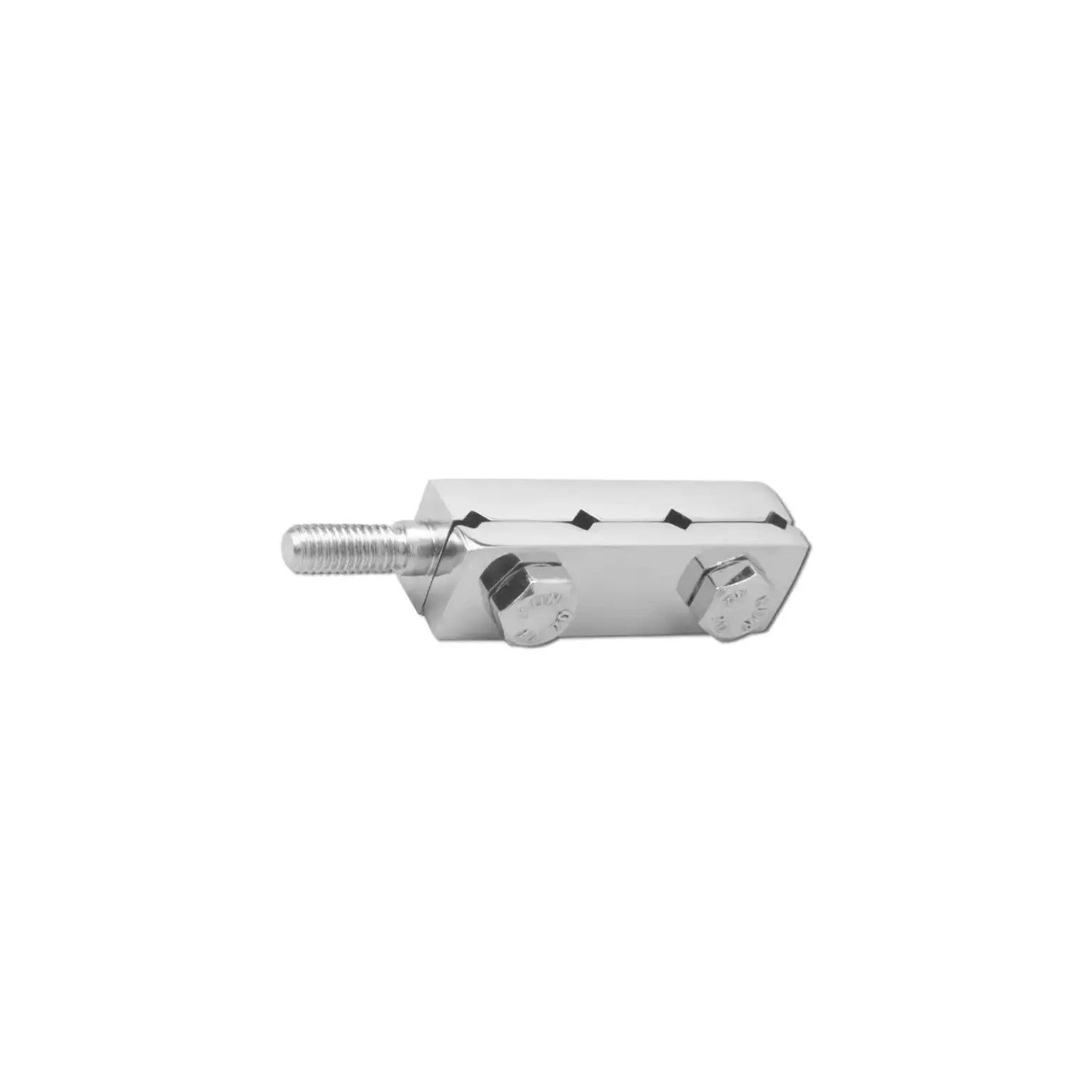

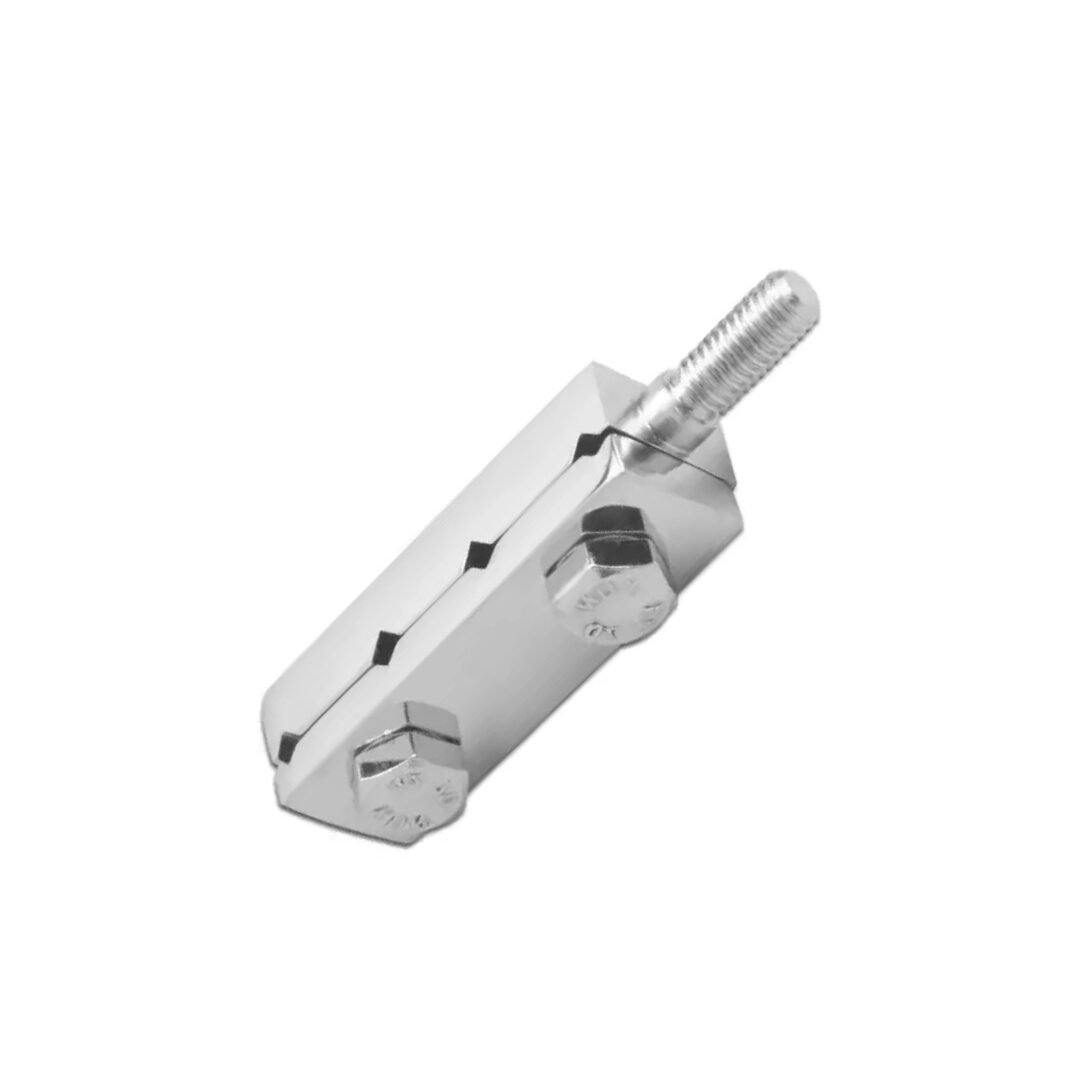

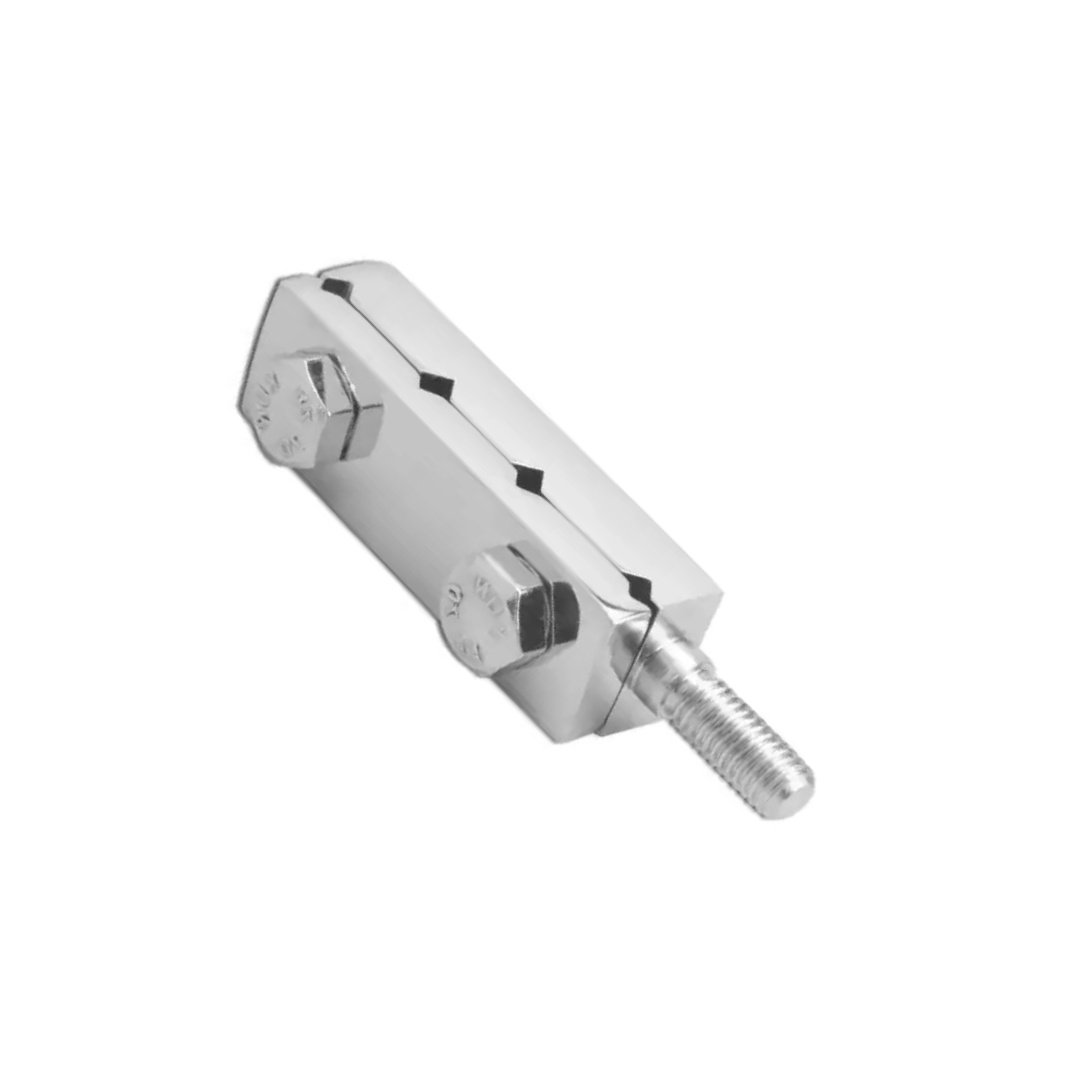

Multipin Fixation Clamp
The Multipin Fixation Clamp is a robust and precision-engineered orthopedic device designed to secure multiple Schanz pins or threaded rods in external fixation constructs. Commonly used in fracture stabilization, limb lengthening, and deformity correction, this clamp serves as a critical junction for connecting pins to rods or other frame elements, offering rigid fixation, adjustability, and reusability. It allows surgeons to fix two or more parallel or diverging pins in a single clamp, simplifying frame construction and reducing the number of components needed—while enhancing construct integrity. Material: Body: High-grade Stainless Steel (316L) or Anodized Aluminum Alloy Offers high tensile strength, corrosion resistance, and biocompatibility Bolts & Fasteners: Made of stainless steel or titanium-coated options (depending on design) Threaded to ensure secure tightening with Allen key or spanner
- External Fixation of Long Bone Fractures – Used in tibia, femur, or humerus fractures, especially for open or complex fractures.
- Limb Lengthening and Bone Transport – Supports stable pin positioning during distraction osteogenesis in Ilizarov-type procedures.
- Deformity Correction Frames – Provides strong pin-holding capacity during angular or rotational corrections.
- Temporary or Definitive Stabilization – Ideal for acute trauma cases, including polytrauma, where rapid pin fixation is required.
- Pediatric and Geriatric Applications – Useful in cases where fewer components and lighter constructs are desired.
- Holds Multiple Schanz Pins Simultaneously – Reduces the number of clamps required in a construct.
- High Clamping Force – Provides stable, slip-resistant fixation under dynamic loads.
- Adjustable Configuration – Allows for both parallel and angled pin placements.
- Compact & Lightweight – Optimized for minimized bulk and ease of handling.
- Reusable & Autoclavable – Suitable for multiple surgical cycles with proper cleaning.
- Compatible with Various Rod Diameters – Integrates easily with standard external fixator rods (e.g., Ø8 mm or Ø11 mm).
Product Ordering
| CAT NO. |
|---|
| 8119EF01 |
