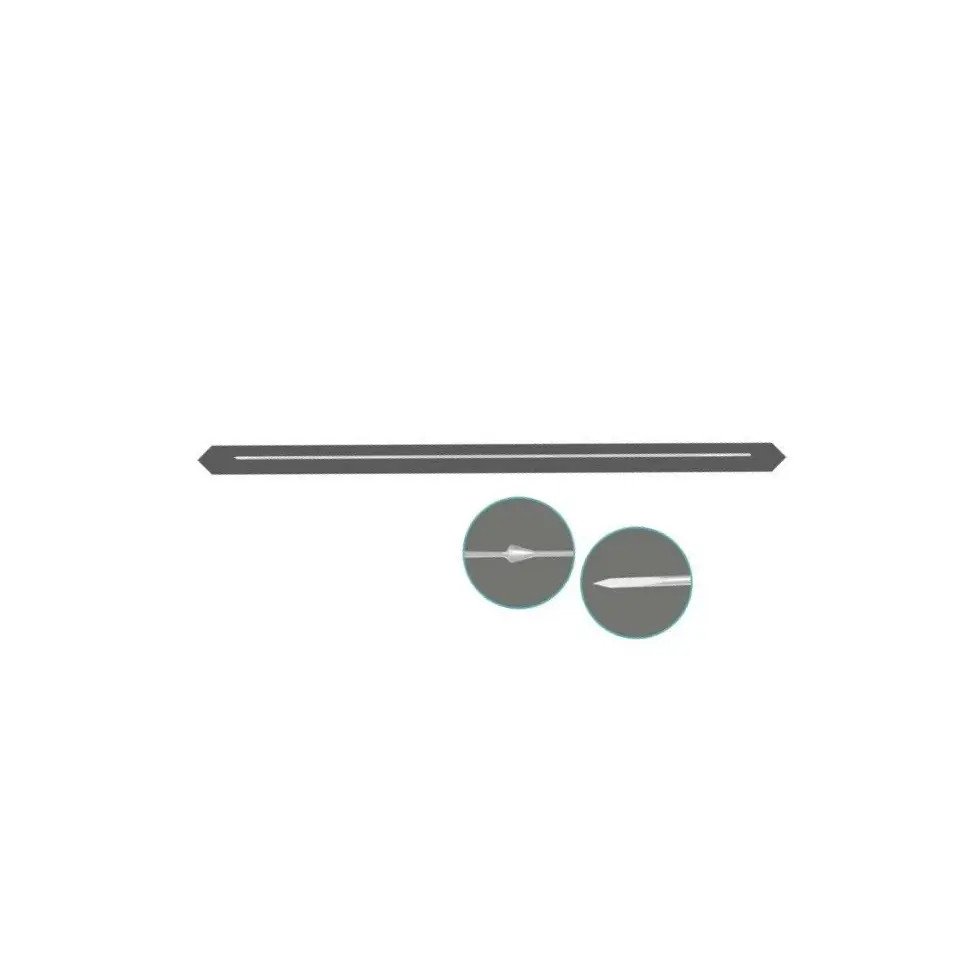

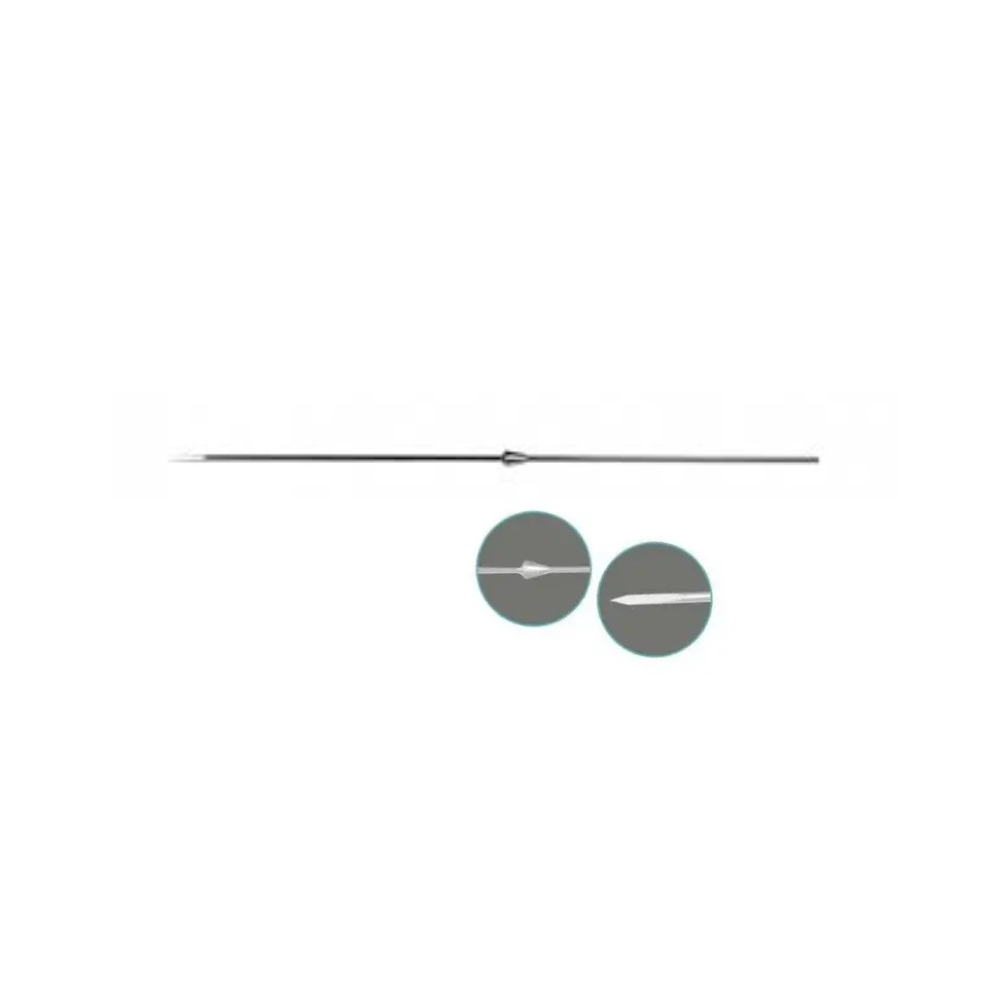

Olive Wire With Bayonet Point
The Olive Wire with Bayonet Point is a specialized orthopedic wire used in circular external fixation systems such as the Ilizarov frame. It features:
A bayonet-shaped tip for smooth and precise bone penetration, and
An integrated "olive" or spherical stopper that prevents wire migration through the bone.
The bayonet point allows for angled, controlled entry with minimal trauma, while the olive (fixed or removable) acts as a mechanical stop, transmitting force and aiding in the correction of angular deformities or bone transport. This wire is typically tensioned post-insertion to provide rigidity to the fixation system.
Material:
Surgical-Grade Stainless Steel (AISI 316LVM)
Optionally available in Titanium (lighter, MRI-compatible)
Properties:
High tensile strength
Corrosion-resistant
Biocompatible
Autoclavable (sterilizable)
- Angular Deformity Correction – Provides asymmetric tensioning to correct valgus/varus or rotational misalignment.
- Bone Transport – Acts as a push/pull anchor during segmental bone movement in distraction osteogenesis.
- Controlled Compression/Distraction – Used where a specific force vector needs to be applied against the bone cortex.
- Preventing Wire Migration – The olive head prevents unintended wire movement, especially during weight-bearing.
- Pediatric Orthopedic Corrections – Ideal for gradual correction in growth plate–sensitive deformities.
- Bayonet Point Tip – Angled, sharp point for clean insertion and directional control.
- Fixed or Removable Olive – Acts as a mechanical stop against bone or frame.
- Smooth Shaft Surface – Minimizes soft tissue damage and infection risk.
- High Tensile Strength – Withstands required tensioning without deformation.
- Multiple Diameters Available – Common sizes: Ø1.8mm, Ø2.0mm.
Product Ordering
| CAT NO. |
|---|
| 8139EF01 |
