Proximal Femoral Nail

Accordion Hover Style
+ Description

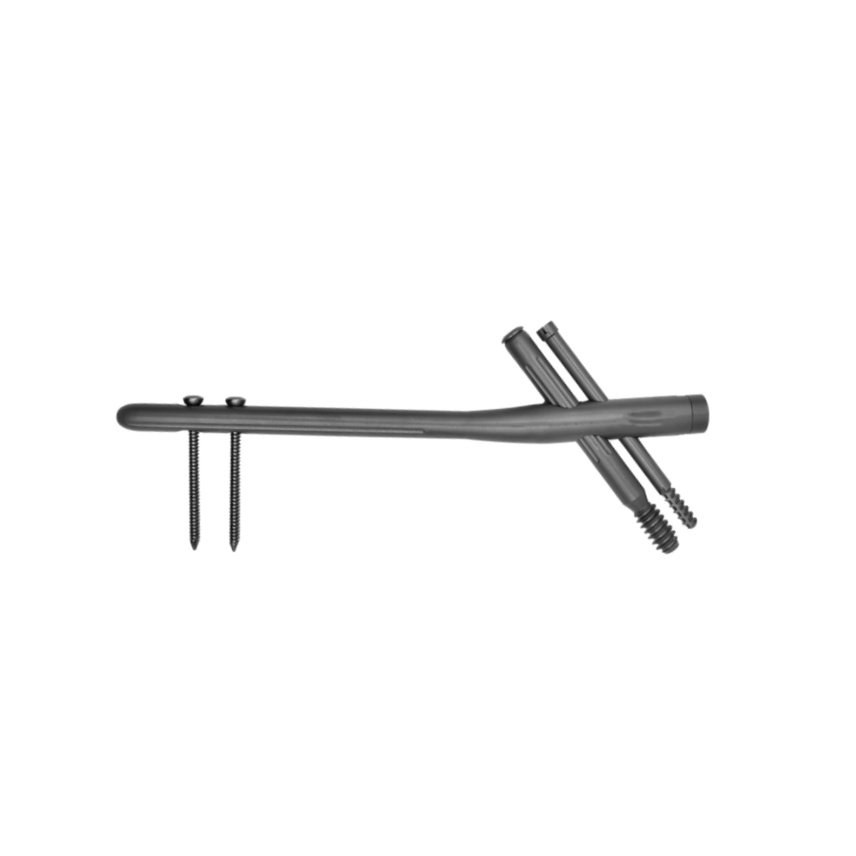

The Proximal Femoral Nail (PFN) is a specialized intramedullary implant designed for the fixation of fractures in the proximal region of the femur, including the femoral neck, intertrochanteric, and subtrochanteric areas. Inserted through the greater trochanter, the nail offers stable internal fixation with minimal soft tissue disruption, promoting early mobilization and functional recovery.

Typically manufactured from biocompatible titanium alloy or stainless steel, PFNs feature a proximal lag screw and anti-rotation screw or helical blade, which anchor the femoral head while preventing rotation and collapse. Distal locking options provide rotational and axial stability, making the PFN suitable for both stable and unstable fracture patterns. The implant is available in various lengths, diameters, and CCD angles to accommodate different patient anatomies and surgical needs.

Accordion Hover Style with Bullets
+ Indications
  • Intertrochanteric femur fractures:- Both stable and unstable variants (AO/OTA 31-A1 to 31-A3).
  • Subtrochanteric femur fractures:-High-stress region requiring strong intramedullary support.
  • Femoral neck fractures (in select cases):- Especially when accompanied by intertrochanteric extension.
  • Pathological fractures of the proximal femur:-Common in metastatic lesions requiring load-bearing stability.
  • Multifragmentary and comminuted fractures:- Where angular and axial stability is critical.
  • Osteoporotic bone fractures in elderly patients:-Nail provides a load-sharing construct suitable for poor bone quality.
  • Fractures in polytrauma patients:-Allows for rapid surgical fixation with minimal blood loss and quicker mobilization.
  • Revision of failed hip fixation devices:-Used in salvage procedures when previous implants fail.

Product Ordering

Femur Nail Product Tables

TROCHANTERIC FEMUR NAIL 130° , ↕ 180 MM

SS TI
Ø9 MM4008SS094008TI09
Ø10 MM4008SS104008TI10
Ø11 MM4008SS114008TI11
Ø12 MM4008SS124008TI12

TROCHANTERIC FEMUR NAIL 135° , ↕ 180 MM

Diameter SS TI
Ø9 MM4009SS094009TI09
Ø10 MM4009SS104009TI10
Ø11 MM4009SS114009TI11
Ø12 MM4009SS124009TI12

SHORT PROXIMAL FEMUR NAIL 130°, ↕ 250 MM

Diameter SS TI
Ø9 MM4010SS094010TI09
Ø10 MM4010SS104010TI10
Ø11 MM4010SS114010TI11
Ø12 MM4010SS124010TI12

SHORT PROXIMAL FEMUR NAIL 135°, ↕ 250 MM

Diameter SS TI
Ø9 MM4011SS094011TI09
Ø10 MM4011SS104011TI10
Ø11 MM4011SS114011TI11
Ø12 MM4011SS124011TI12

LONG PROXIMAL FEMUR NAIL 130° , ↕ 340 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4012SS094012TI094013SS094013TI09
Ø10 MM4012SS104012TI104013SS104013TI10
Ø11 MM4012SS114012TI114013SS114013TI11
Ø12 MM4012SS124012TI124013SS124013TI12

LONG PROXIMAL FEMUR NAIL 130° , ↕ 360 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4014SS094014TI094015SS094015TI09
Ø10 MM4014SS104014TI104015SS104015TI10
Ø11 MM4014SS114014TI114015SS114015TI11
Ø12 MM4014SS124014TI124015SS124015TI12

LONG PROXIMAL FEMUR NAIL 130° , ↕ 380 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4016SS094016TI094017SS094017TI09
Ø10 MM4016SS104016TI104017SS104017TI10
Ø11 MM4016SS114016TI114017SS114017TI11
Ø12 MM4016SS124016TI124017SS124017TI12

LONG PROXIMAL FEMUR NAIL 130° , ↕ 400 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4018SS094018TI094019SS094019TI09
Ø10 MM4018SS104018TI104019SS104019TI10
Ø11 MM4018SS114018TI114019SS114019TI11
Ø12 MM4018SS124018TI124019SS124019TI12

LONG PROXIMAL FEMUR NAIL 130° , ↕ 420 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4020SS094020TI094021SS094021TI09
Ø10 MM4020SS104020TI104021SS104021TI10
Ø11 MM4020SS114020TI114021SS114021TI11
Ø12 MM4020SS124020TI124021SS124021TI12

LONG PROXIMAL FEMUR NAIL 130° , ↕ 440 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4022SS094022TI094023SS094023TI09
Ø10 MM4022SS104022TI104023SS104023TI10
Ø11 MM4022SS114022TI114023SS114023TI11
Ø12 MM4022SS124022TI124023SS124023TI12

LONG PROXIMAL FEMUR NAIL 135° , ↕ 340 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4024SS094024TI094025SS094025TI09
Ø10 MM4024SS104024TI104025SS104025TI10
Ø11 MM4024SS114024TI114025SS114025TI11
Ø12 MM4024SS124024TI124025SS124025TI12

LONG PROXIMAL FEMUR NAIL 135° , ↕ 360 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4026SS094026TI094027SS094027TI09
Ø10 MM4026SS104026TI104027SS104027TI10
Ø11 MM4026SS114026TI114027SS114027TI11
Ø12 MM4026SS124026TI124027SS124027TI12

LONG PROXIMAL FEMUR NAIL 135° , ↕ 380 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4028SS094028TI094029SS094029TI09
Ø10 MM4028SS104028TI104029SS104029TI10
Ø11 MM4028SS114028TI114029SS114029TI11
Ø12 MM4028SS124028TI124029SS124029TI12

LONG PROXIMAL FEMUR NAIL 135° , ↕ 400 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4030SS094030TI094031SS094031TI09
Ø10 MM4030SS104030TI104031SS104031TI10
Ø11 MM4030SS114030TI114031SS114031TI11
Ø12 MM4030SS124030TI124031SS124031TI12

LONG PROXIMAL FEMUR NAIL 135° , ↕ 420 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4032SS094032TI094033SS094033TI09
Ø10 MM4032SS104032TI104033SS104033TI10
Ø11 MM4032SS114032TI114033SS114033TI11
Ø12 MM4032SS124032TI124033SS124033TI12

LONG PROXIMAL FEMUR NAIL 135° , ↕ 440 MM

Diameter LEFT RIGHT
SSTI SSTI
Ø9 MM4034SS094034TI094035SS094035TI09
Ø10 MM4034SS104034TI104035SS104035TI10
Ø11 MM4034SS114034TI114035SS114035TI11
Ø12 MM4034SS124034TI124035SS124035TI12
