Rail

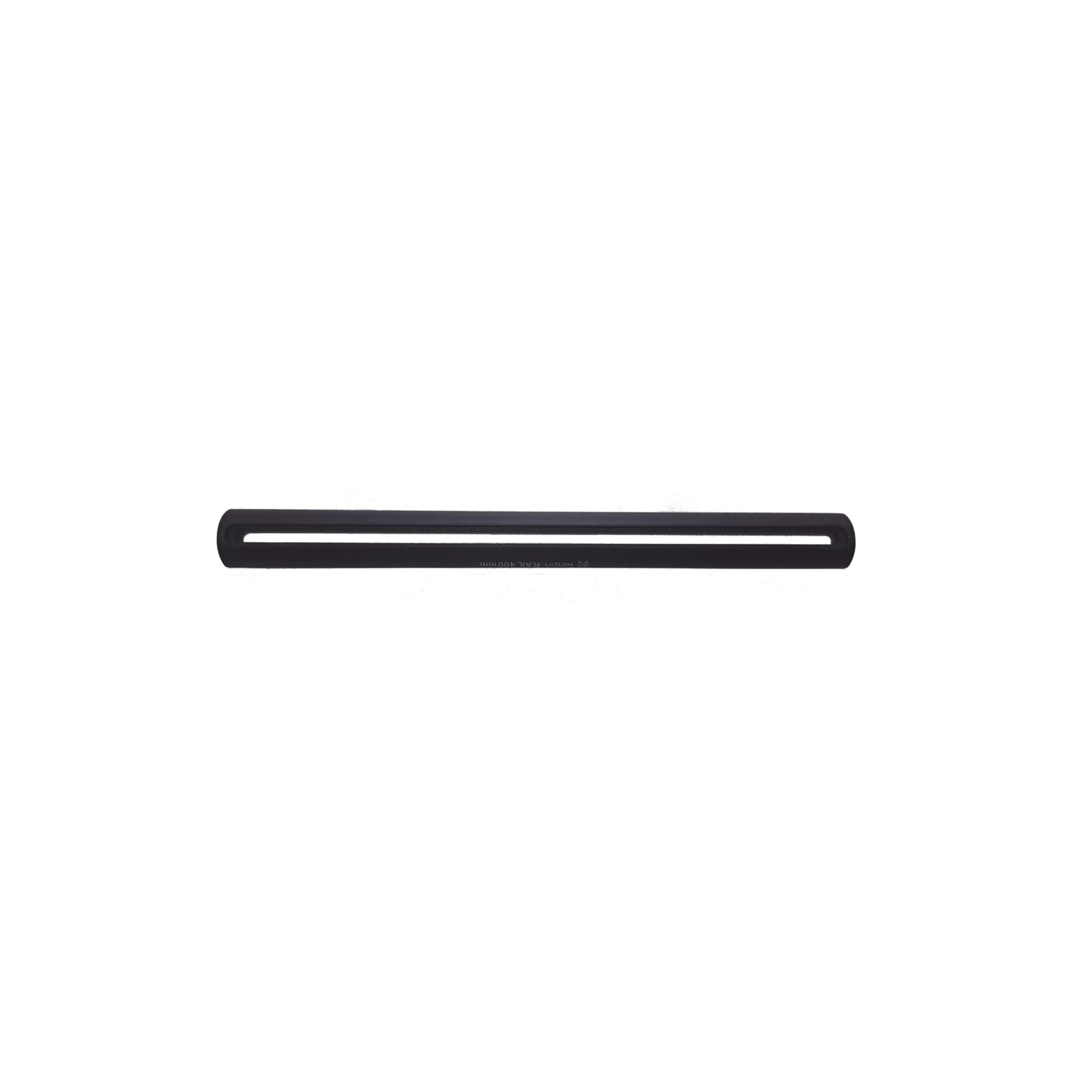

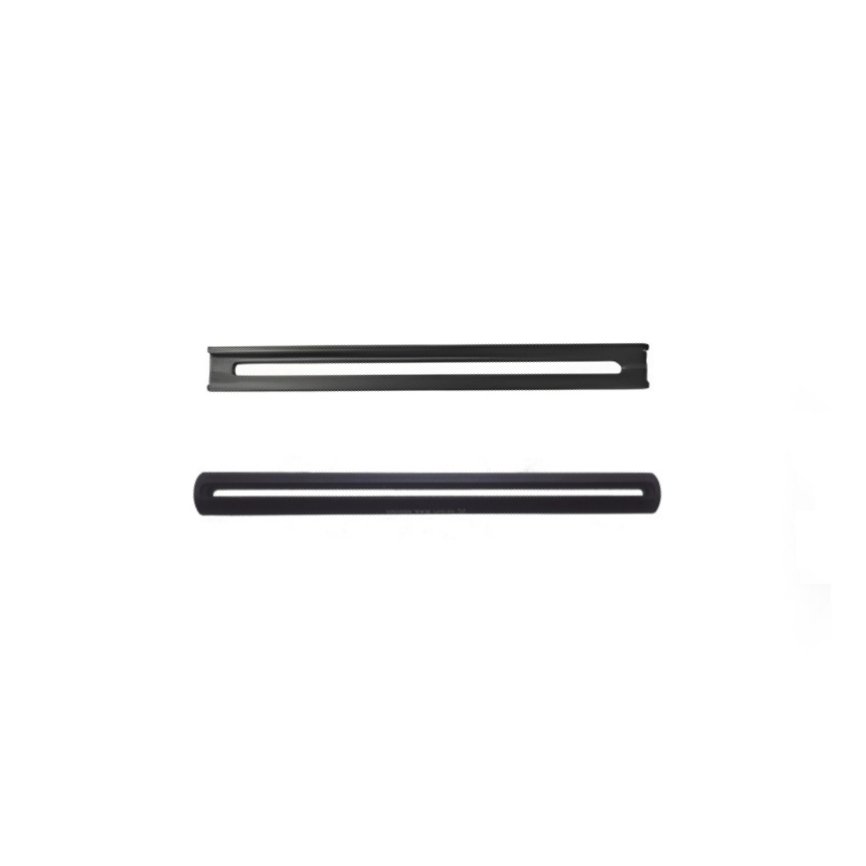

The Rail is the central structural element in a modular external fixation system, designed to serve as a rigid platform for connecting clamps, rods, and Schanz pins. It enables precise, customizable frame configurations for the stabilization of fractures, deformity correction, and limb reconstruction.
Available in various lengths and profiles (standard, mini, or telescopic), the rail is engineered for maximum strength-to-weight ratio, allowing both stability and adjustability in orthopedic procedures.
Made from AISI 316L STAINLESS STEEL, offering excellent strength, corrosion resistance, and long-term biocompatibility.
Some variants may feature TITANIUM ALLOY (Ti-6Al-4V) for weight reduction and enhanced MRI compatibility.
Surface finish optimized for smooth clamp sliding and secure fixation.
- Fracture Stabilization: Provides a rigid backbone for stabilizing long bone fractures (e.g., tibia, femur, humerus) through external fixation.
- Deformity Correction: Enables precise adjustment of components for angular, rotational, or translational correction in complex skeletal deformities.
- Limb Lengthening: Serves as the guide structure for distraction osteogenesis procedures, allowing controlled bone segment movement over time.
- Bone Transport: Facilitates segmental transport of bone in the treatment of bone defects or post-traumatic reconstruction.
- Frame Customization: Allows modular attachment of clamps, rods, and pins, enabling tailored frame configurations for each patient’s anatomy and treatment needs.
- Modular Design: Provides a linear platform for attaching multiple fixation components like clamps, rods, and crossbars.
- Length Variants & Scalability: Available in various lengths to accommodate different anatomical regions and surgical needs.
- High Structural Rigidity: Maintains frame stability under dynamic load during fracture healing and mobilization.
- Multi-Component Compatibility: Compatible with a wide range of external fixator clamps and accessories (e.g., T Clamps, Swivel Clamps, Socket Clamps).
- Reusable & Sterilizable: Withstands repeated sterilization without deformation or corrosion, ensuring long-term clinical usability.
- Clinical Versatility: Ideal for trauma, deformity correction, limb lengthening, and bone transport in both upper and lower extremities.
Product Ordering
| CAT NO | SIZE |
|---|---|
| RAIL (ADULT) | |
| 8022EF01 | 240 MM |
| 8022EF02 | 300 MM |
| 8022EF03 | 400 MM |
| RAIL (PEDIATRIC) | |
| 8023EF01 | 150 MM |
| 8023EF02 | 200 MM |
| 8023EF03 | 250 MM |
