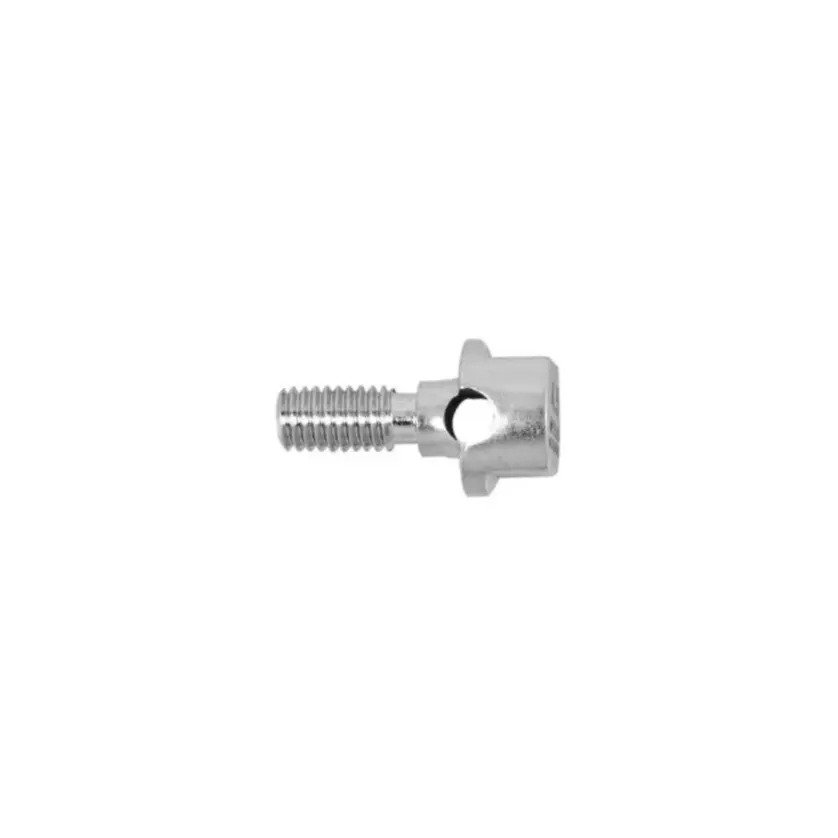

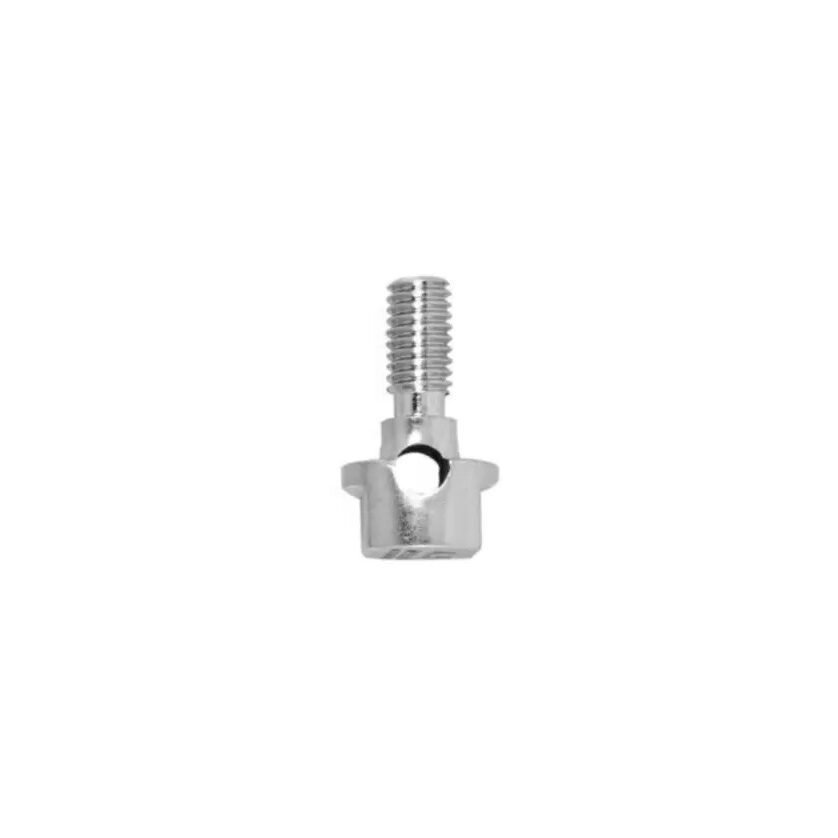

Single Pin Fixation Bolt
+ Description
The Single Pin Fixation Bolt is a compact orthopedic fastener designed to securely hold a single Schanz pin or threaded rod in place within an external fixator construct. It provides rigid pin-to-rod fixation, enabling accurate alignment and stability of bone fragments or osteotomy sites. This component is ideal for fine adjustments, custom frame building, and supplementary pin fixation, especially in monolateral, hybrid, or ring fixator systems. Material: Material: Medical-Grade Stainless Steel (AISI 316L) or Anodized Aluminum Alloy Offers excellent mechanical strength, corrosion resistance, and biocompatibility Finish: Polished or matte finish for easy sterilization Autoclavable and reusable
+ Indications
- External Fixation of Long Bone Fractures – Used to hold individual Schanz pins in place, especially in modular monolateral fixators.
- Temporary Fixation During Surgery – Allows for quick pin locking during surgical alignment or reduction.
- Pediatric or Small Bone Applications – Excellent for lightweight and focused fixation, especially in smaller frame setups.
- Custom Hybrid Frames – Useful in transitional zones of hybrid circular fixators where single-pin control is essential.
- Supplementary Fixation – Provides additional support in unstable or high-load areas of a fixator assembly.
+ Key Features
- Secures One Pin – Designed for holding a single Schanz pin or threaded K-wire.
- High Holding Strength – Ensures stable pin fixation even under dynamic forces.
- Compact Design – Minimal profile for use in tight anatomical locations.
- Threaded Bolt Mechanism – Allows easy locking with standard tools (e.g., Allen key).
- Compatible with Rods – Interfaces with external fixator rods (typically Ø8mm or Ø11mm).
- Modular Use – Can be placed independently or in combination with other clamps.
Product Ordering
| CAT NO. |
|---|
| 8120EF01 |
