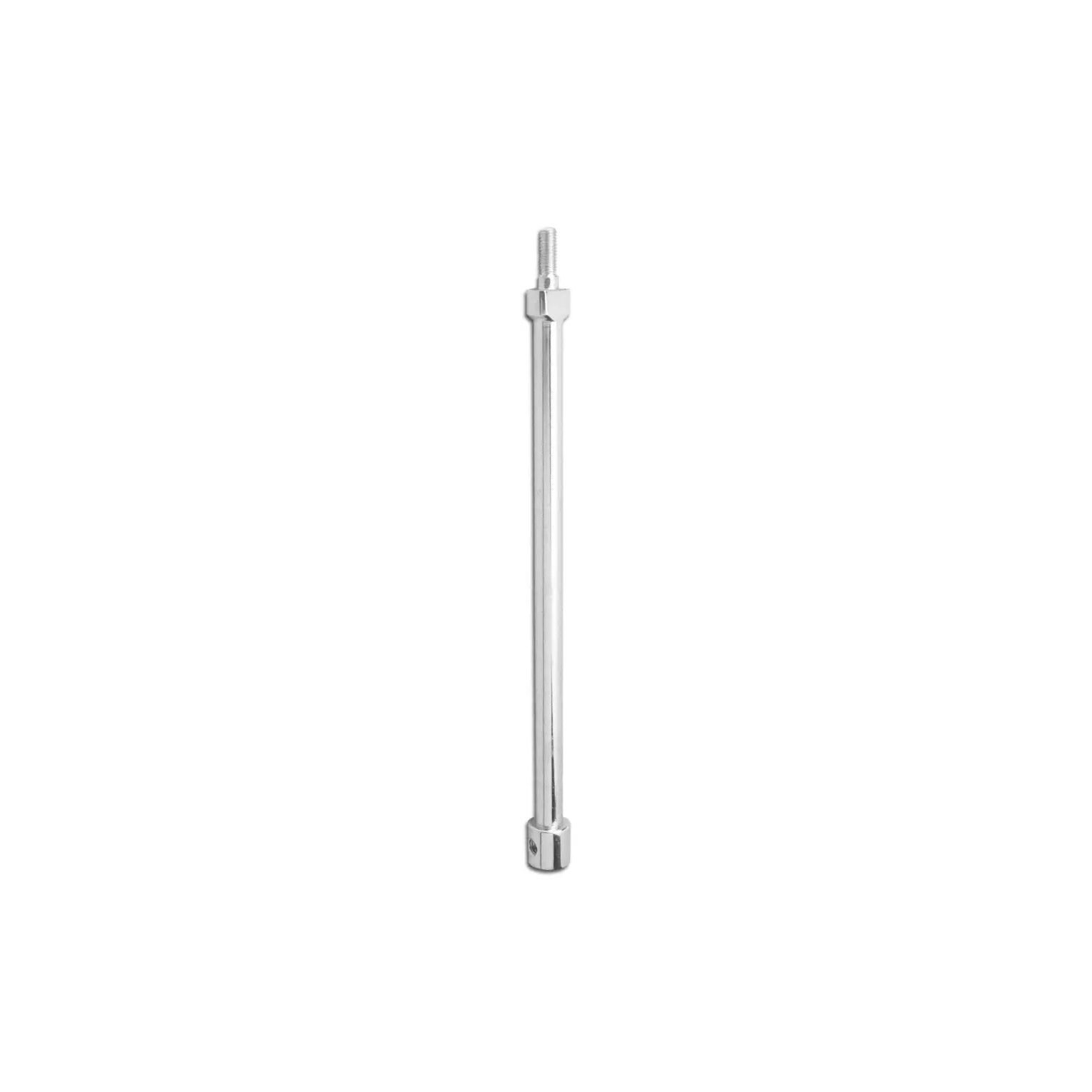

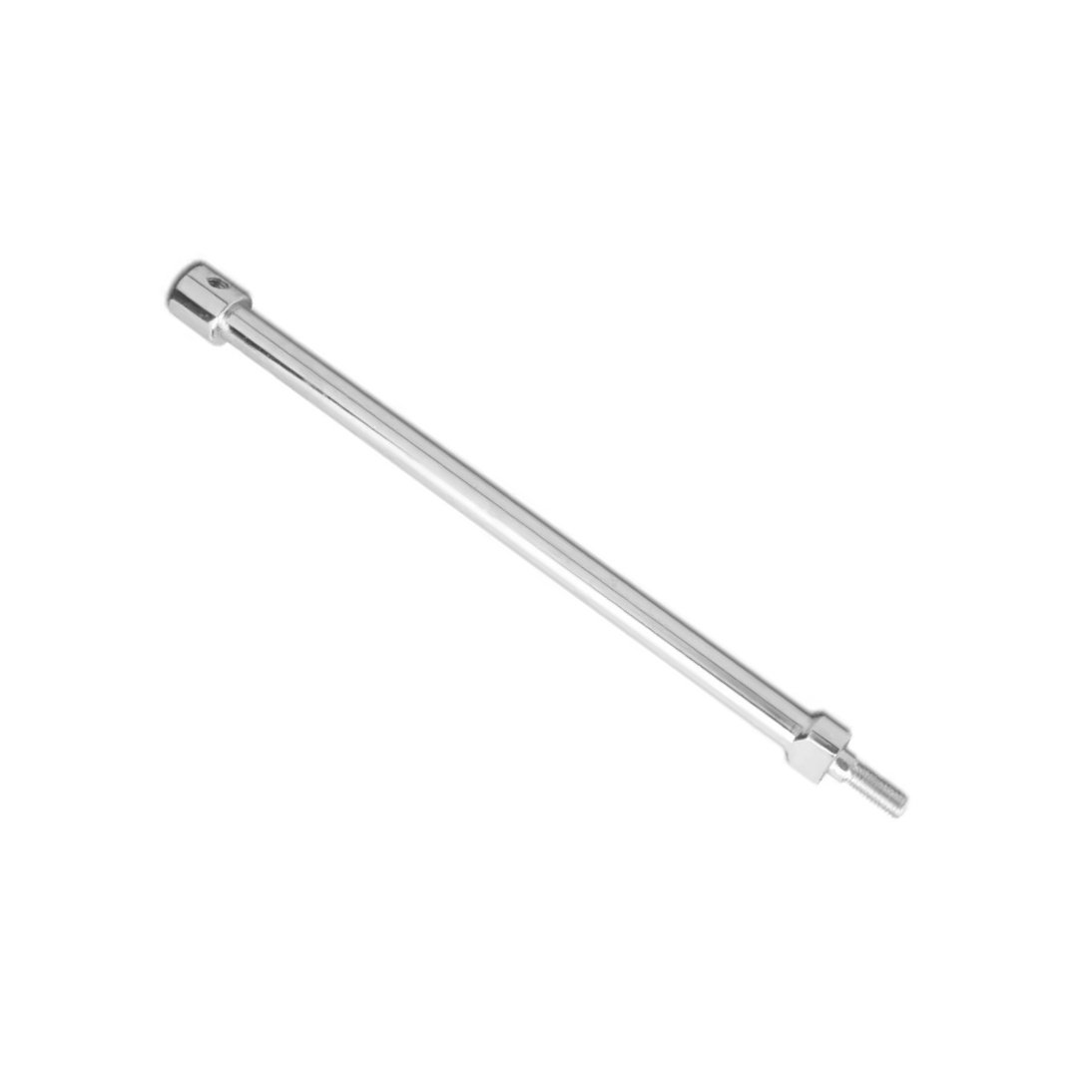

Telescopic Rod
The Telescopic Rod is a modular, adjustable-length rod designed to enable controlled distraction or compression in external fixator constructs. It consists of inner and outer tubes, where the inner rod slides within the outer housing. This mechanism allows for precise length adjustment during or after surgery, without dismantling the fixator frame. The rod is commonly used in limb lengthening, bone transport, fracture management, and gradual deformity correction procedures. Adjustment can be done manually using a wrench or control knob, or mechanically with threaded mechanisms. Material Options: Outer Tube: Surgical-Grade Stainless Steel (AISI 316L) or Anodized Aluminum Inner Rod: Hardened Stainless Steel or Titanium Alloy (for smoother motion and strength) Surface Finish: Smooth, polished or matte finish Fully autoclavable and corrosion-resistant Adjustment Mechanism: Threaded locking or graduated scale for precision length setting
- Limb Lengthening Procedures – Used to gradually increase bone length post-osteotomy (e.g., Ilizarov technique).
- Bone Transport – Allows controlled movement of a bone segment across a defect or gap.
- Post-Traumatic Limb Shortening – Assists in restoring limb length by gradual mechanical distraction.
- Deformity Correction Frames – Offers flexible alignment and angulation during correction phases.
- Dynamic Compression/Distraction – Provides postoperative control for healing management without frame disassembly.
- Telescoping Mechanism – Allows variable length adjustment (distraction/compression).
- Length Options – Typically ranges from short (e.g., 100–150mm) to long (e.g., 250–400mm).
- Threaded Lock or Scale Markings – For secure and measurable movement.
- High Rigidity & Durability – Withstands orthopedic loads during treatment.
- Reusable & Sterilizable – Designed for long-term surgical utility.
- Smooth Operation – Ensures patient comfort and consistent adjustment.
Product Ordering
| CAT NO. | Size |
|---|---|
| TELESCOPIC ROD | |
| 8012EF01 | 100 MM |
| 8012EF02 | 150 MM |
| 8012EF03 | 200 MM |
| 8012EF04 | 250 MM |
| 8012EF05 | 300 MM |
