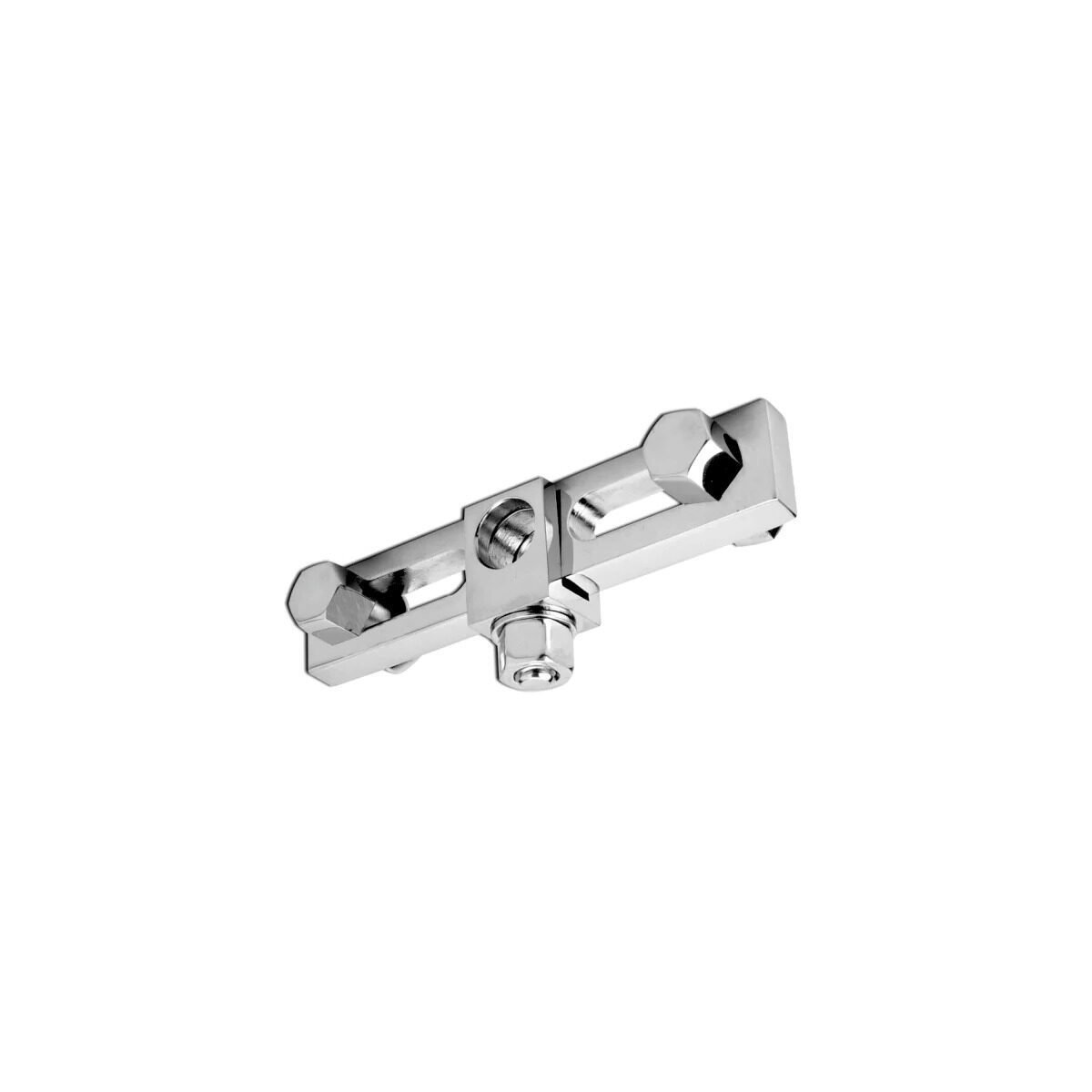

Transverse Clamp
+ Description
The Transverse Clamp is a specialized orthopedic component designed to connect a Schanz pin to a rod in a perpendicular (90°) orientation within external fixation systems. This clamp plays a critical role in constructing multi-planar frame configurations, particularly in complex trauma and deformity correction cases. It provides a strong and rigid connection, ensuring stability even under load-bearing conditions. Material: Clamp Body: Medical-Grade Stainless Steel (AISI 316L) Locking Components: Stainless Steel or Reinforced Polymer (optional) Properties: Corrosion-resistant and biocompatible High tensile and shear strength Reusable and fully autoclavable
+ Indications
- Commonly used in external fixation systems for fracture stabilization.
- Ideal for perpendicular connection of half pins to rods.
- Enables cross-bracing and multi-directional frame assembly.
- Frequently applied in limb reconstruction, bone transport, and complex trauma cases.
+ Key Features
- 90° Pin-to-Rod Connection – Ideal for transverse alignment.
- Holds One Pin (Ø4.0MM–Ø6.0MM).
- Fits Rods of Ø8.0MM or Ø11.0MM Diameter.
- Strong Locking Mechanism for high load stability.
- Compact Profile to minimize soft tissue interference.
- Ergonomic Design for easy handling and installation.
- Durable, Autoclavable, and Reusable.
Product Ordering
| CAT NO. |
|---|
| 8001EF08 |
