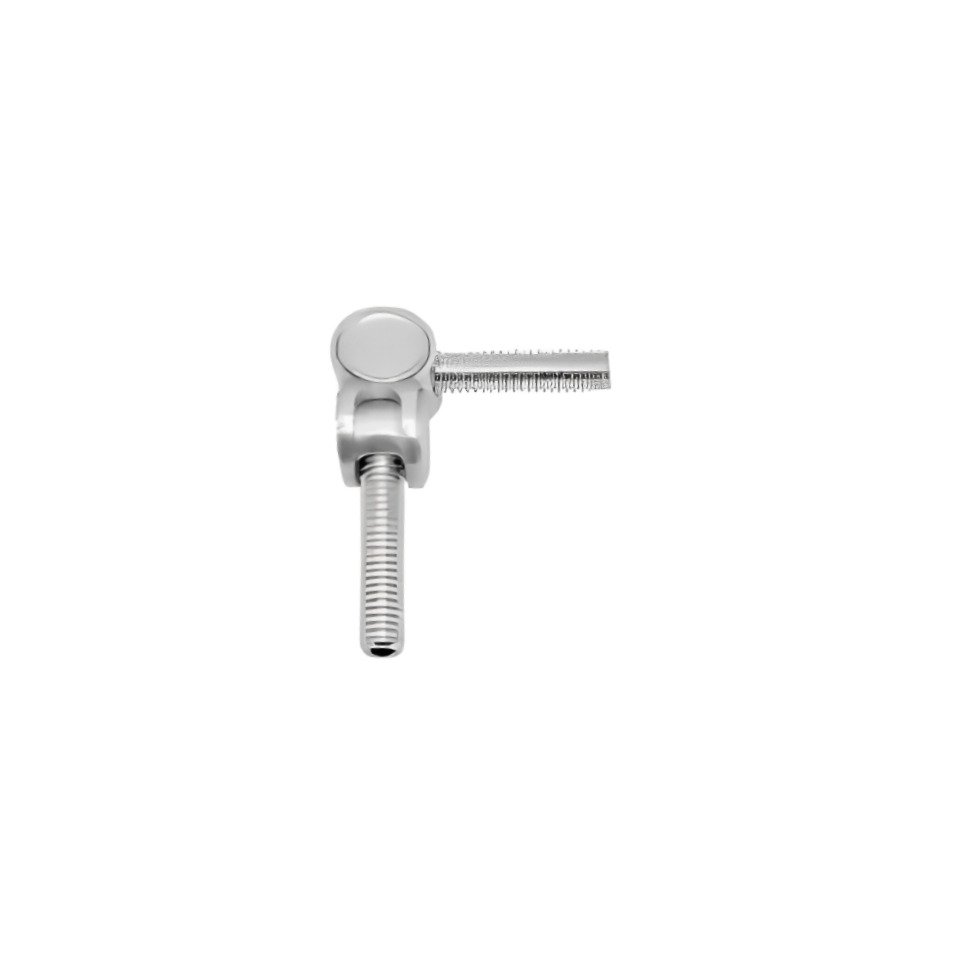

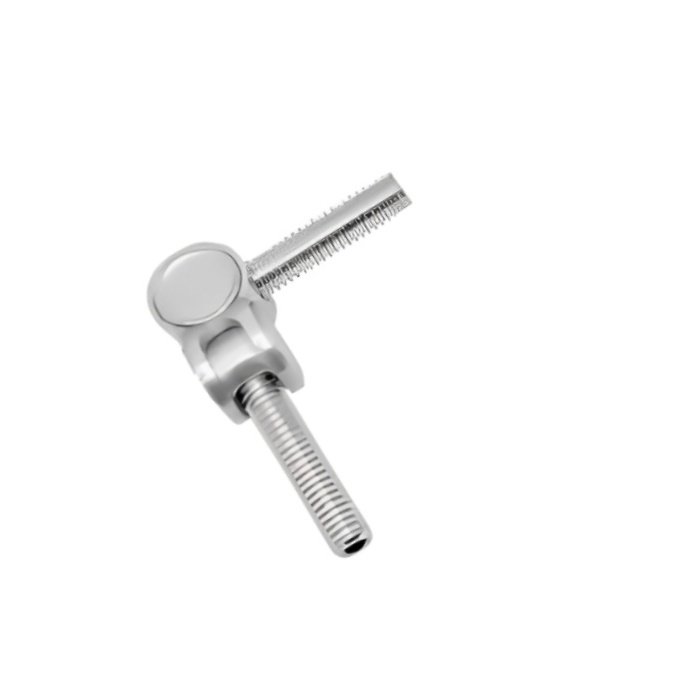

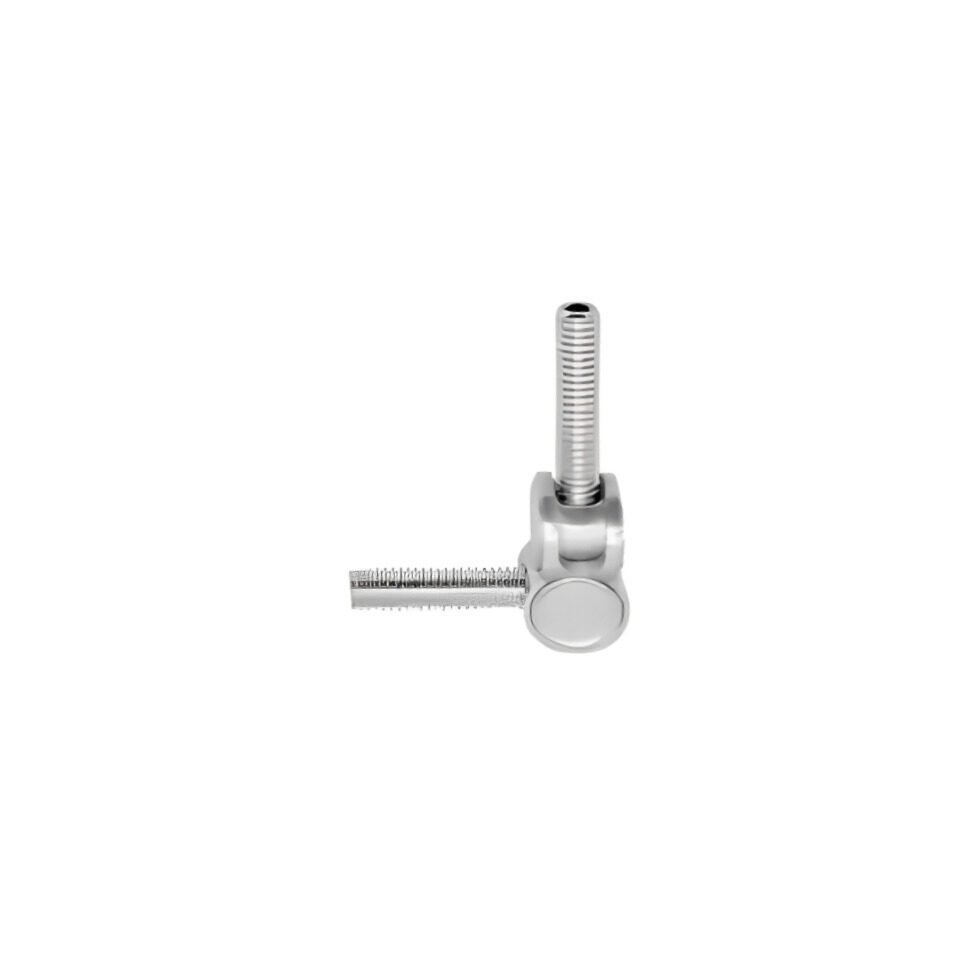

Universal Hinge
The Universal Hinge is a mechanical articulation joint used in external fixator systems to enable controlled angular movement or to lock a specific angle between rods or rings. It is designed to offer multi-plane flexibility or rigid fixation, depending on the clinical need. Surgeons use this hinge to perform corrections involving rotation, angulation, and alignment during limb reconstruction or deformity correction. It typically connects rods (such as 6mm or 8mm diameter) and is compatible with a variety of frame configurations, including Ilizarov, hybrid, or monolateral systems. Material: Body & Arms: Surgical-Grade Stainless Steel (AISI 316L) Optional versions may use Anodized Aluminum or Titanium for lightweight applications Hinge Pin & Fasteners: Hardened Stainless Steel, precision-machined Locking bolts included Surface Finish: Passivated or polished for corrosion resistance Fully sterilizable and reusable
- Angular Correction in Deformity Procedures – Enables gradual or acute angulation for conditions like varus/valgus or recurvatum/procurvatum deformities.
- Limb Lengthening Adjustments – Assists in guiding or correcting alignment during distraction osteogenesis.
- Trauma and Fracture Management – Used to hold or adjust the position of bone fragments in complex or multi-fragmentary fractures.
- Dynamic Frame Configurations – Permits movement in hinge-based fixators (e.g., for knee arthrodiastasis or elbow mobilization).
- Multi-Axial Functionality – Allows angulation in multiple directions.
- Lockable Design – Can be locked at a desired angle after adjustment.
- High Load Capacity – Withstands mechanical stresses from limb movement and weight-bearing.
- Universal Fit – Connects with standard rods or clamps (usually Ø6mm–Ø8mm).
- Compact Structure – Facilitates use in tight anatomical spaces.
- Reusable – Durable through repeated sterilization cycles.
Product Ordering
| CAT NO. |
|---|
| 8167EF01 |
